Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series

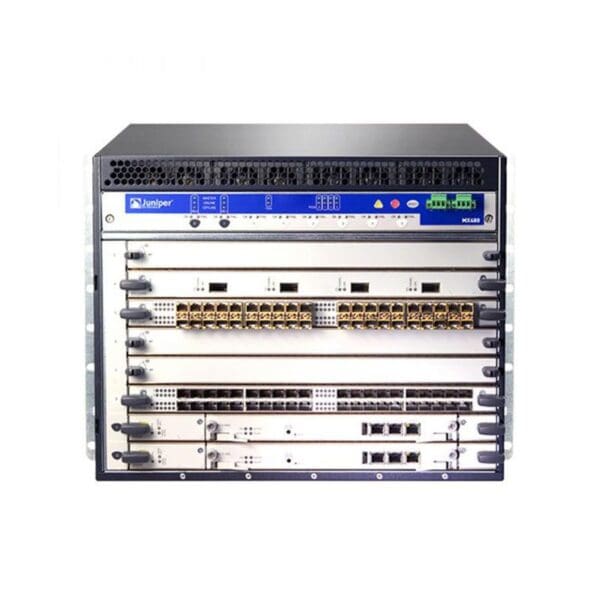

Model :MX480
Bundled with :Juniper Networks Switch Control Board, 1 x Routing Engine
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :2
Supported Devices / Modules Qty :8
Performance
Performance :Switching capacity: 5.76 Tbps, Per-slot switching capacity: 480 Gbps
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :Ethernet, Frame Relay, TDM, ATM
Routing Protocol :BGP, GRE, MPLS
Key Features :VPN support, Firewall
Features :Quality of Service (QoS), Switch Fabric Element Redundancy, IPv6 support, MPLS Fast Reroute (FRR), Firewall protection, VLAN support, NAT support, MPLS support, IPv4 support, VPN support, Virtual Chassis technology, High Availability
Expansion Slots
Expansion Slots :8 (total) / 6 (free) x expansion slot
Power Device
Type :Internal power supply
Installed Qty :3
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Black
Included Accessories :Fan tray
Dimensions & Weight
Width :17.5 inch
Depth :23.8 inch
Height :14 inch
