Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series

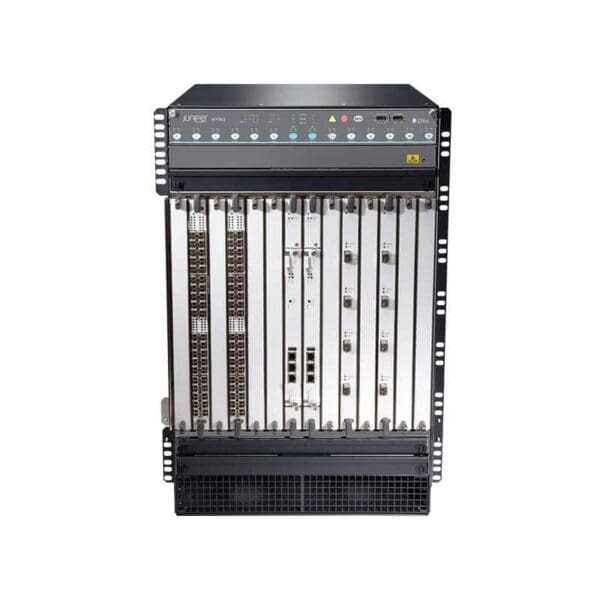

Model :MX960
Packaged Quantity :1
Chassis
Supported Devices / Modules Qty :14
Networking
Type :Modular expansion base
Form Factor :Desktop
Modular :Modular
Connectivity Technology :Wired
Data Link Protocol :ATM, Frame Relay
Remote Management Protocol :HTTP, SNMP 2, SNMP 3
Status Indicators :Status
Key Features :VPN support
Features :VPN support, Layer 2 switching, Manageable, Quality of Service (QoS), High Availability, MPLS Fast Reroute (FRR), Layer 3 switching, MPLS support, Modular design
Expansion Slots
Expansion Slots :14 expansion slot
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Power Redundancy :Yes
Installed Qty :4
Max Supported Qty :4
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :16
Compliant Standards :EN 60950, EMC, BSMI, CSA C22.2 No. 60950-00, EN 61000-4-11, EN 61000-4-4, EN 61000-4-3, EN 61000-4-5, VCCI Class B ITE, IEC 825-1/EN 60825-1 class 1, EN 61000-3-2, NEBS level 3, UL 60950, EN 61000-4-6, FCC Part 15 B, AS/NZ 3548 Class B, EN 61000-4-2, EN55022 Class B
Dimensions & Weight
Width :17.5 inch
Depth :23.5 inch
Height :27.8 inch
Weight :334.66 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
