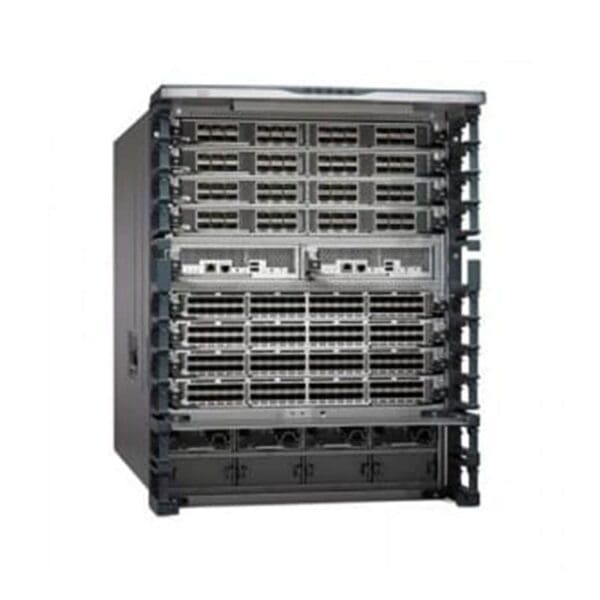

Brand :Cisco
Product Line :Cisco Nexus
Model :7710
Kit :Bundle
Bundled with :2 x Cisco Nexus 7000 Series Supervisor 2 Enhanced Module, 3x Cisco Nexus 7000 Series Fabric-2 Module
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :5
Supported Devices / Modules Qty :16
Processor
Type :Xeon
Installed Qty :4
Manufacturer :Intel
Clock Speed :2.13 GHZ
RAM
Technology :DDR3 SDRAM
Installed Size :64 GB
Flash Memory
Installed Size :32 GB, 32 GB
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Rack-mountable
Advanced Switching :Layer 3
Routing Protocol :IGMP
Manageable :Yes
Remote Management Protocol :CLI, SNMP 1, SNMP 2c, SNMP 3
Features :Layer 2 switching, Layer 3 switching, Modular design, Spanning Tree Protocol (STP) support
Expansion Slots
Expansion Slots :10 (total) / 8 (free) x expansion slot, 6 (total) / 3 (free) x fabric module slot
Interface Provided
Interfaces :2 x management (Gigabit LAN) 10Base-T/100Base-TX/1000Base-T – RJ-45 – RJ-45, Serial: 2 x serial (console) console – RJ-45 – RJ-45, USB: 4 x USB
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :0
Max Supported Qty :8
Miscellaneous
Height (Rack Units) :14
Compliant Standards :AS/NZS 60950, BSMI CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1, CISPR 22 Class A, CISPR 24, EMC, EN 300 386, EN 55022 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN55022 Class A, EN55024, ETSI, FCC Class A certified, GR-1089-CORE, GR-63-CORE, ICES-003 Class A, IEC 60950-1, KN22, NEBS level 3, UL 60950-1, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :34 inch
Height :24.4 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
