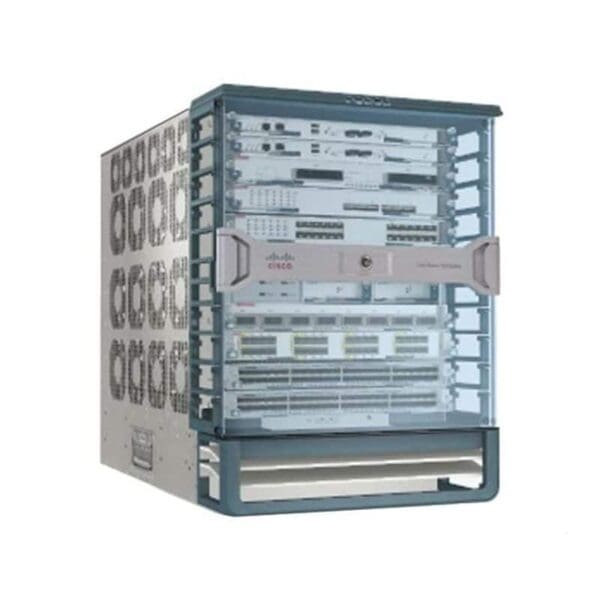

Brand :Cisco
Product Line :Cisco Nexus
Model :7009
Kit :Bundle
Bundled with :2 x Cisco Nexus 7000 Series Supervisor 2 Module, 5x Cisco Nexus 7000 Series Fabric-2 Module
Packaged Quantity :1
Chassis
Installed Devices / Modules Qty :7
Supported Devices / Modules Qty :14
Processor
Type :Xeon
Installed Qty :2
Manufacturer :Intel
Clock Speed :2.13 GHZ
RAM
Installed Size :24 GB
Flash Memory
Installed Size :16 GB, 16 GB
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Rack-mountable
Advanced Switching :Layer 3
Manageable :Yes
Remote Management Protocol :CLI, SNMP 1, SNMP 2c, SNMP 3
Features :Modular design
Expansion Slots
Expansion Slots :14 (total) / 7 (free) x expansion slot, 4 (total) / 2 (free) x CompactFlash Card
Interface Provided
Interfaces :2 x console – RJ-45 management, 2 x console RJ-45, 2 x USB Type B, 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45 management, 4 x USB Type A
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Installed Qty :0
Max Supported Qty :2
Miscellaneous
Height (Rack Units) :14
MTBF :318,572 Hours
Compliant Standards :BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, EMC, EN 300 386, EN 60950-1, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN300-386, EN50082-1, EN55022 Class A, EN55024, ETSI, FCC CFR47 Part 15, FCC Class A certified, ICES-003 Class A, IEC 60950-1, NEBS level 3, RoHS 5/6, UL 60950-1, VCCI Class A ITE
Dimensions & Weight
Width :17.3 inch
Depth :24 inch
Height :24.5 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
