Brand :Cisco
Product Line :Cisco Nexus

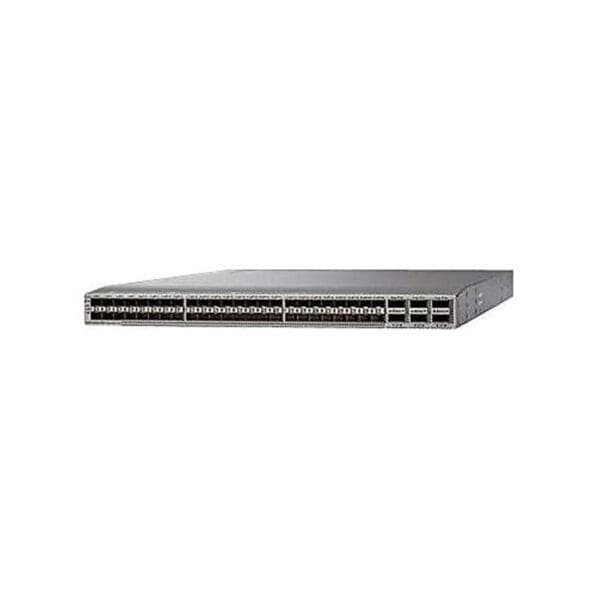

Model :93180YC-FX
Packaged Quantity :1
Chassis
Built-in Devices :64 GB SSD
RAM
Installed Size :16 GB
Performance
Performance :Active SPAN sessions: 4, Bandwidth: 3.6 Tbps
Capacity
Capacity :ACL entries (egress): 2000, ACL entries (ingress): 4000, ECMP paths: 64, HSRP groups: 490, IGMP snooping groups: 8000, Maximum number of links in a port channel: 32, Maximum number of port channels: 512, Multicast routes: 8000, Multiple Spanning Tree Protocol instances: 64, Per VLAN Rapid Spanning Tree instances: 4000, Virtual Routing and Forwarding (VRF) instances: 1000, VLANs supported: 4096
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :25 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :24
Advanced Switching :Layer 3
Routing Protocol :BGP, ECMP, EIGRP, HSRP, MPLS, MSDP, OSPF, PIM-SM, RIP, RIP-2
MAC Address Table Size :512K entries
Features :40MB system buffer, Ethernet Virtual Private Network (EVPN), High Availability, Hot swappable 4 fans, In-Service Software Upgrade (ISSU), Layer 3 switching, NPV Gateway mode, Source-Specific Multicast (SSM), Virtual Extensible LAN (VXLAN), Virtual PortChannel (vPC) technology
Ports
Qty :24
Type :1/10/25 Gigabit SFP+
Ports (2nd)
Qty :6
Type :40/100 Gigabit QSFP+
Interface Provided
Interfaces :1 x management RJ-45, 1 x management SFP+, 1 x serial (RS-232), 1 x USB, 24 x 1/10/25Gbit LAN SFP+ downlink, 6 x 100Gbit/40Gbit LAN QSFP28 uplink
Software
Type :Cisco NX-OS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Power Redundancy Scheme :N+1
Installed Qty :0
Max Supported Qty :2
Miscellaneous
Color Category :Gray
Included Accessories :Fixed accessory kit
Height (Rack Units) :1
Compliant Standards :AS/NZS 60950-1, CAN/CSA C22.2 No. 60950-1 Second Edition, CISPR 22 Class A, CISPR 24, CNS 13438 Class A, Directive 2004/108/EC, Directive 2006/95/EC, EN 300 386, EN 300386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN 61000-4, KN22 Class A, RoHS, RoHS 6/6, UL 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width :17.3 inch
Depth :22.5 inch
Height :1.7 inch
Weight :17.2 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 95% (non-condensing)
