Brand :Cisco
Product Line :Cisco Prime Network Analysis Module

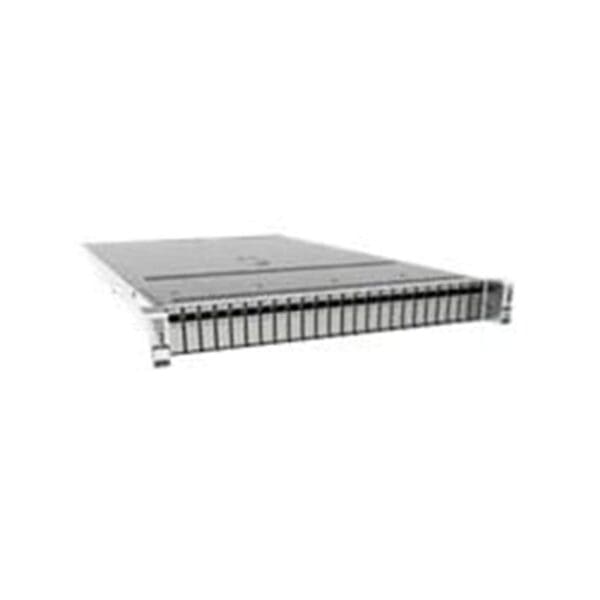

Model :2420 Appliance
Packaged Quantity :1
Processor
Type :Xeon
Processor Number :E5-2660V3
Installed Qty :1
Max Supported Qty :1
Manufacturer :Intel
Clock Speed :2.6 GHZ
RAM
Form Factor :DIMM 288-pin
Technology :DDR4 SDRAM
Installed Size :64 GB
Storage Controller
RAID Level :RAID 1, RAID 5
Hard Drive
Type :HDD
Hot-Swap :Hot-swap
Form Factor :2.5″ SFF
Form Factor (metric) :6.4 cm SFF
Interface Type :Serial ATA-300 / SAS
Installed Qty :16
Capacity :1 TB
Performance
Performance :Full packet capture to disk: up to 11.5 Gbps, Throughput: 17 Gbps
Capacity
Capacity :Number of monitored client-server transactions: 400000, Number of monitored RTP streams: 20000
Networking
Type :Network monitoring device
Form Factor :Rack-mountable
Ports Qty :2
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet
Routing Protocol :MPLS
Network / Transport Protocol :NTP, RTCP, RTP, TCP/IP, UDP/IP
Remote Management Protocol :HTTP, HTTPS, RMON, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Features :DiffServ Code Point (DSCP) support, Management Information Base (MIB), Mean Opinion Score (MOS), NetFlow, Remote Switch Port Analyzer (RSPAN)
IP Telephony
VoIP Protocols :MGCP, SCCP, SIP
Expansion Bays
Expansion Bays :24 (total) / 8 (free) x hot-swap – 2.5″
Expansion Slots
Expansion Slots :6 PCI Express 2.0 x16
Interface Provided
Interfaces :1 x 1000Base-T (management) – RJ-45, 1 x keyboard / video / mouse (KVM), 1 x management (RS-232) – RJ-45, 2 x 1000Base-T – RJ-45, 2 x 10GBase-X – SFP+, 2 x USB 3.0 – Type A
Power Device
Type :Internal power supply
Installed Qty :1
Max Supported Qty :2
Power Provided :1200 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Miscellaneous
Height (Rack Units) :2
Encryption Algorithm :SSL
Authentication Method :TACACS+
Compliant Standards :AS/NZS 60950-1, BSMI CNS 13438 Class A, CISPR 22 Class A, CISPR 24, CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 300386, EN 55022 Class A, EN 60950-1 Second Edition, EN 61000-3-2, EN 61000-3-3, EN55022 Class A, EN55024, GB 4943, ICES-003 Class A, IEC 60950-1 Second Edition, KN22 Class A, KN24, UL 60950-1 Second Edition, VCCI Class A
Dimensions & Weight
Width :17.6 inch
Depth :29 inch
Height :3.4 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
