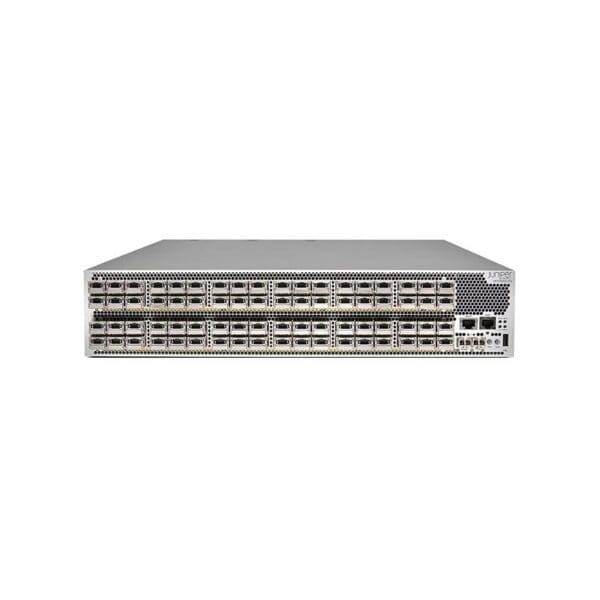

Refurbished QFX10002-72Q-T Juniper Networks QFX Series

$36,330.00

The QFX10000 line of high-performance fixed core and spine switches delivers industry-leading scalability, density, and flexibility, helping cloud and data center operators build automated data center networks that provide superior long-term investment protection. Designed for a diverse set of deployment options, the QFX10000 switches allow data center operators to build cloud networks that best suit their deployment needs and easily evolve as requirements change over time.

Refurbished QFX10002-72Q-T Juniper Networks QFX Series
$36,330.00

Manufacturer :Netscreen

Brand :Juniper, Juniper Networks

Product Line :Juniper Networks QFX Series

Model :QFX10002-72Q

Packaged Quantity :1

Chassis

Airflow Direction :Front to back airflow

Processor

Installed Qty :1

Manufacturer :Intel

Clock Speed :2.5 GHZ

RAM

Installed Size :16 GB

Performance

Performance :Forwarding performance: 2 Bpps, Throughput: 5.76 Tbps

Capacity

Capacity :IPv4 routes: 2000000, Virtual interfaces (VLANs): 4000, IPv6 forwarding information base (FIB): 256000, GRE tunnels: 4096, IPv4 forwarding information base (FIB): 256000, IPv6 routes: 2000000, IPv4 routes (Multicast): 128000, IPv6 routes (Multicast): 128000, Virtual output queues: 384000, ARP entries: 256000, Equal-Cost Multipathing (ECMP) ways: 64, Queues per port: 8

Networking

Type :Switch

Subcategory :Network hubs and switches

Subtype :40 Gigabit Ethernet

Form Factor :Rack-mountable

Ports Qty :72

Advanced Switching :Layer 3

Routing Protocol :OSPFv3, Bidirectional Forwarding Detection (BFD), RIPng, MLD, MLDv2, RIP-2, CIDR, VRRP, OSPFv2, OSPF, IGMPv2, ECMP, GRE, PIM-DM, MSDP, Static IP routing, Bidirectional PIM, BGP-4, PIM-SM, PIM-SSM, RIP-1, IGMPv3, IGMP

MAC Address Table Size :512K entries

Jumbo Frame Support :9216 bytes

Manageable :Yes

Remote Management Protocol :TFTP, CLI, SNMP 2, RMON 9, RMON 1, RMON 2, SSH, SNMP 1, RMON 3, Telnet, SNMP 3

Features :DoS attack prevention, sFlow v5, Port mirroring, Unicast Reverse Path Forwarding (URPF), NTP time synchronization, Spanning Tree Protocol (STP) support, Internet Control Message Protocol (ICMP), Access Control List (ACL) support, IPv6 support, sFlow, RARP support, Data Center Bridging Exchange (DCBX) support, IGMP snooping, BOOTP support, 24GB packet buffer, EVB Type-Length-Value (TLV), Rapid Spanning Tree Protocol (RSTP) support, VLAN support, ICMP Router Discovery Protocol (IRDP), Explicit Congestion Notification (ECN), SNTP support, IPv4 support, Class of Service (CoS), Precision Time Protocol (PTP), Front to back airflow, Weighted Random Early Detection (WRED), Virtual Output Queuing (VOQ), FCoE support, VLAN Spanning Tree Protocol (VSTP), DiffServ support, DHCP server, Redundant hot swappable fans, Neighbor Discovery Protocol (NDP), Management Information Base (MIB), Weighted Round Robin (WRR) queuing, DHCP relay, System log, Quality of Service (QoS), ARP support, IGMP proxy, MLD snooping, Multiple Spanning Tree Protocol (MSTP) support

Compliant Standards :IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.3, IEEE 802.1w, IEEE 802.1p, IEEE 802.3u, IEEE 802.1s, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qaz, IEEE 802.3ba, IEEE 802.1Q, IEEE 802.3ab

Ports

Qty :72

Type :40 Gigabit QSFP+ (breakout compatible)

Interface Provided

Interfaces :1 x SFP management, 1 x 1000Base-T RJ-45 management, 1 x console management, 72 x 40Gbit LAN QSFP+ (breakout compatible), 1 x SFP+ management, 1 x USB 2.0 management

Power Device

Type :Internal power supply

Power Redundancy :Yes

Installed Qty :4

Max Supported Qty :4

Power Provided :1600 watt

Nominal Voltage :AC 120/230 V

Frequency Required :50/60 hertz

Power Consumption Operational :1000 watt

System Requirements

OS Required :JUNOS

Miscellaneous

Color Category :Gray

TAA Compliant :Yes

Height (Rack Units) :2

Encryption Algorithm :MD5, AES

Authentication Method :Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)

Compliant Standards :EN 61000-3-3, CISPR 22 Class A, KN22 Class A, ETSI 300 019, EN 60825-1, EN55024, CAN/CSA C22.2 No. 60950-1, EN 61000-3-2, REACH, BSMI CNS 13438 Class A, UL 60950-1, CISPR 24, EN 300386, EN 55022 Class A, GR-63-CORE, RoHS 6/6, VCCI Class A, FCC CFR47 Part 15 A, ICES-003 Class A, WEEE, EN 60950-1, IEC 60950-1, CAN/CSA-C22.2 No. 60950-1

Dimensions & Weight

Width :17.4 inch

Depth :31 inch

Height :3.5 inch

Weight :68.34 lbs

Environmental Parameters

Min Operating Temperature :32 degree Fahrenheit

Max Operating Temperature :104 degree Fahrenheit

Min Storage Temperature :-40 degree Fahrenheit

Max Storage Temperature :158 degree Fahrenheit

Humidity Range Operating :5 – 90% (non-condensing)

Humidity Range Storage :5 – 95% (non-condensing)
