Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series

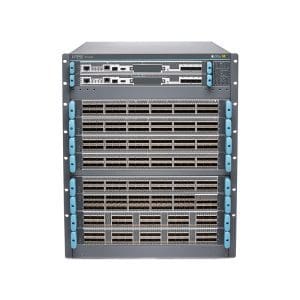

Model :QFX10008
Kit :Base
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Built-in Devices :50 GB SSD
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :2.5 GHZ
RAM
Installed Size :32 GB
Performance
Performance :Bandwidth per slot: 7.2 Tbps, Forwarding performance: 16 Bpps, Throughput: 48 Tbps
Capacity
Capacity :Virtual interfaces (VLANs): 16000, IPv4 routes: 2000000, Equal-Cost Multipathing (ECMP) ways: 64, IPv4 routes (Multicast): 128000, GRE tunnels: 4096, IPv6 forwarding information base (FIB): 256000, Virtual output queues: 384000, Queues per port: 8, IPv6 routes (Multicast): 128000, ARP entries: 256000, IPv4 forwarding information base (FIB): 256000, IPv6 routes: 2000000
Networking
Type :Switch
Subcategory :Network hubs and switches
Form Factor :Rack-mountable
Advanced Switching :Layer 3
Routing Protocol :PIM-SSM, RIPng, IGMPv3, OSPFv2, PIM-DM, MLD, RIP-2, IGMP, Bidirectional PIM, OSPF, GRE, Static IP routing, RIP-1, IGMPv2, MLDv2, VRRP, OSPFv3, MSDP, BGP-4, CIDR, PIM-SM, Bidirectional Forwarding Detection (BFD), ECMP
MAC Address Table Size :1M entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :SNMP 3, RMON 9, Telnet, CLI, RMON 1, SSH, RMON 2, SNMP 2, RMON 3, TFTP, SNMP 1, SNMP 2c
Features :NTP time synchronization, Redundant hot swappable fans, Front to back airflow, IGMP proxy, Data Center Bridging Exchange (DCBX) support, ARP support, MACsec support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, MLD snooping, DoS attack prevention, Non-Stop Bridging (NSB), DHCP server, sFlow v5, IPv6 support, Spanning Tree Protocol (STP) support, Fan tray, Switch Fabric Element Redundancy, EVB Type-Length-Value (TLV), Internet Control Message Protocol (ICMP), Virtual Output Queuing (VOQ), Class of Service (CoS), Weighted Round Robin (WRR) queuing, Access Control List (ACL) support, Explicit Congestion Notification (ECN), Port mirroring, Precision Time Protocol (PTP), VLAN Spanning Tree Protocol (VSTP), Rapid Spanning Tree Protocol (RSTP) support, ICMP Router Discovery Protocol (IRDP), Unicast Reverse Path Forwarding (URPF), DHCP relay, BOOTP support, Management Information Base (MIB), Weighted Random Early Detection (WRED), IGMP snooping, Non-Stop Routing (NSR), Graceful Route Engine Switchover (GRES), RARP support, FCoE support, Quality of Service (QoS), IPv4 support, SNTP support, VLAN support, System log, Neighbor Discovery Protocol (NDP), DiffServ support
Compliant Standards :IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.3u, IEEE 802.1Qaz, IEEE 802.3ae, IEEE 802.1D, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3z, IEEE 802.3ba, IEEE 802.3ad (LACP), IEEE 802.3ab, IEEE 802.1Qbb, IEEE 802.3, IEEE 802.1p
Expansion Slots
Expansion Slots :2 (total) / 1 (free) x Services and Routing Engine (SRE), 6 (total) / 1 (free) x Switching Fabric Unit, 8 (total) / 8 (free) x expansion slot
Interface Provided
Interfaces :2 x 1000Base-T RJ-45 management, 1 x console management, 4 x SFP+, 1 x SFP management, 1 x USB 2.0, 1 x serial management
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Optional
Installed Qty :3
Max Supported Qty :6
Power Provided :2700 watt
Nominal Voltage :AC 230 V
Power Consumption Operational :1659 watt
80 PLUS Certification :80 PLUS Silver
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
Height (Rack Units) :13
Encryption Algorithm :MD5, AES
Authentication Method :TACACS+, RADIUS, Secure Shell v.2 (SSH2), Secure Shell (SSH)
Compliant Standards :EN 60825-1, KN22 Class A, EN55024, CISPR 22 Class A, REACH, EN 55022 Class A, CISPR 24, WEEE, RoHS 6/6, UL 60950-1, ETSI 300 019, BSMI CNS 13438 Class A, EN 61000-3-3, EN 60950-1, CAN/CSA C22.2 No. 60950-1, EN 61000-3-2, VCCI Class A, ICES-003 Class A, ETS 300 753, IEC 60950-1, GR-63-CORE, EN 300386, FCC CFR47 Part 15 A, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.4 inch
Depth :32 inch
Height :22.6 inch
Weight :279.98 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :5 – 95% (non-condensing)
