Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series

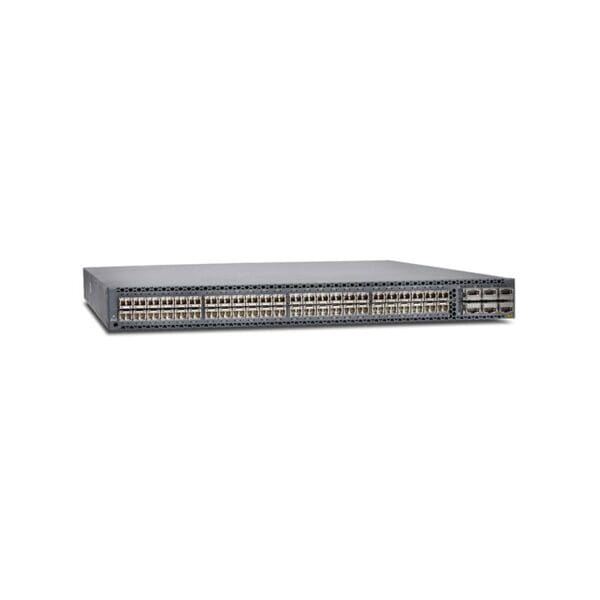

Model :QFX5100-48S
Packaged Quantity :1
Chassis
Airflow Direction :Back to front airflow
Built-in Devices :32 GB SSD
Processor
Installed Qty :1
Manufacturer :Intel
Clock Speed :1.5 GHZ
RAM
Installed Size :8 GB
Performance
Performance :Switching capacity: 1.44 Tbps, Switching capacity: 1.08 Bpps
Capacity
Capacity :IPv6 routes (Multicast): 52000, IPv6 routes (Unicast): 64000, Multiple Spanning Tree Protocol instances: 64, VLAN Spanning Tree Protocol instances: 253, IPv4 routes (Unicast): 128000, IPv4 hosts: 208000, ARP entries: 48000, Virtual interfaces (VLANs): 4096, IPv4 routes (Multicast): 104000
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :48
Fibre Channel :FC-BB-6, FC-BB-5
Advanced Switching :Layer 3
Routing Protocol :PIM-SM, IGMPv2, IGMPv3, MSDP, RIP, Bidirectional Forwarding Detection (BFD), Static IP routing, VRRP, RIP-2, CIDR, OSPF, ECMP, IGMP
MAC Address Table Size :288K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :SNMP 3, SSH, CLI, RMON, SNMP 1, SNMP 2, Telnet
Features :Multiple Spanning Tree Protocol (MSTP) support, Redundant hot swappable fans, Class of Service (CoS), Trivial File Transfer Protocol (TFTP) support, Low-latency queuing (LLQ), 12 MB shared buffer, Cut-through, Non-Stop Routing (NSR), Weighted Random Early Detection (WRED), Graceful Route Engine Switchover (GRES), IPv6 support, Redundant trunk group (RTG), MAC address filtering, IPv4 support, Management Information Base (MIB), Data Center Bridging Exchange (DCBX) support, Rapid Spanning Tree Protocol (RSTP) support, BOOTP support, sFlow, VPN support, DHCP snooping, DHCP server, Strict Priority Queuing (SPQ), DoS attack prevention, Access Control List (ACL) support, Store and forward, RARP support, Flow control, Loop prevention, VLAN Spanning Tree Protocol (VSTP), VLAN support, Back to front airflow, Trunking, FCoE forwarding, ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Tunneling, Data Center Bridging (DCB), Non-Stop Bridging (NSB), IGMP snooping, High Availability, DHCP relay, SNTP support, Dynamic ARP Inspection (DAI)
Compliant Standards :IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1Qaz, IEEE 802.1D, IEEE 802.1ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Qbg, IEEE 802.1Qbb, IEEE 802.1Qau, IEEE 802.1s, Shaped Deficit Weighted Round-Robin (SDWRR), IEEE 802.1ab (LLDP), IEEE 802.1Q
Ports
Qty :48
Type :1 Gigabit SFP/ 10 Gigabit SFP+
Ports (2nd)
Qty :6
Type :40 Gigabit QSFP+ (breakout compatible)
Interface Provided
Interfaces :1 x console management, 48 x 10Gbit LAN SFP+, 1 x SFP management, 6 x QSFP+ (breakout compatible), 1 x USB management, 1 x RJ-45 management
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :150 watt
80 PLUS Certification :80 PLUS
System Requirements
OS Required :JUNOS
Miscellaneous
Color Category :Gray
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :MD5, AES
Authentication Method :TACACS+, RADIUS, Secure Shell v.2 (SSH2), Secure Shell (SSH)
Compliant Standards :NCC, BSMI CNS 13438, WEEE, China RoHS, GR-63-CORE, EN55022 Class A, UL 60950-1, FCC CFR47 Part 15, VCCI Class A, AS/NZS CISPR 22, IEC 60950-1, EN 60950-1, REACH, NEBS level 3, EN 60825-1, GR-1089-CORE, RoHS 6/6, CAN/CSA C22.2 No. 60950-1, CAN/CSA-C22.2 No. 60950-1
Dimensions & Weight
Width :17.4 inch
Depth :20.5 inch
Height :1.7 inch
Weight :21.83 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
