Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series

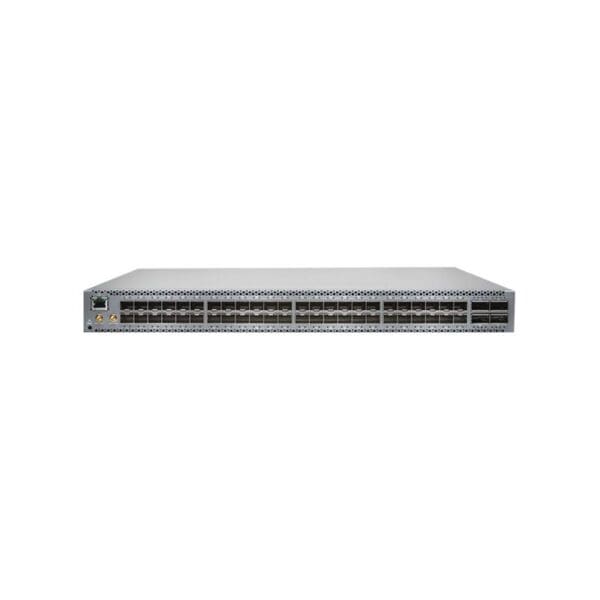

Model :QFX5110-48S
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Performance
Performance :Switching capacity: 1.32 Bpps, Switching capacity: 1.76 Tbps Capacity
Capacity :QoS hardware queues per port: 12, Maximum member ports per LAG: 32, MSTP instances: 64, IPv4 routes (Unicast): 128000, Firewall ingress filters: 6142, LAG groups: 104, VSTP instances: 253, IPv6 routes (Unicast): 84000, VLAN IDs: 4093, MAC address entries: 288000, IPv4 routes (Multicast): 104000, IPv6 routes (Multicast): 52000, Jumbo frame size: 9216, ARP entries: 48000, Firewall egress filters: 1022
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :10 Gigabit Ethernet
Form Factor :Rack-mountable
Ports Qty :48
Advanced Switching :Layer 3
Routing Protocol :IGMP, Static IP routing, OSPF, IS-IS, RIP, VRRP, IGMPv2, BGP, IGMPv3
MAC Address Table Size :288K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :TFTP, SNMP 2, CLI, SNMP 1, SNMP 3, Telnet
Features :Weighted Random Early Detection (WRED), IGMP snooping, Bidirectional Forwarding Detection (BFD), Spanning Tree Protocol (STP) support, Port filtering, Hot swappable fan, Cut-through, sFlow v5, Data Center Bridging (DCB), Dynamic ARP Inspection (DAI), High Availability, Multicast Source Discovery Protocol (MSDP), VLAN support, Port mirroring, Uplink Failure Detection (UFD), Quality of Service (QoS), IP source guard, VLAN filtering, Proxy ARP, Management Information Base (MIB), DHCP snooping, DHCP relay, Redundant fans, VLAN Spanning Tree Protocol (VSTP), Redundant trunk group (RTG), PIM-SM snooping, Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Private VLAN, Front to back airflow, Multiple Spanning Tree Protocol (MSTP) support, Store and forward, Routed VLAN Interface (RVI), Smoothed Deficit Weighted Round Robin (SDWRR), Loop prevention, Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), FCoE support, Data Center Bridging Exchange (DCBX) support, Bridge protocol data unit (BPDU), MPLS support, IGMP filtering
Compliant Standards :IEEE 802.1w, IEEE 802.1D, IEEE 802.1Qbb, IEEE 802.1ad, IEEE 802.11, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP), IEEE 802.1Qaz, IEEE 802.1s, IEEE 802.3x
Ports
Qty :48
Type :1 Gigabit / 10 Gigabit SFP+
Ports (2nd)
Qty :4
Type :40 Gigabit / 100 Gigabit QSFP28
Interface Provided
Interfaces :2 x management, 48 x 1/10Gbit LAN SFP+, 1 x USB 2.0, 1 x serial (RS-232), 4 x 100Gbit/40Gbit LAN QSFP28/QSFP+
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Power Consumption Operational :195 watt
80 PLUS Certification :80 PLUS Silver
Miscellaneous
Color Category :Gray
TAA Compliant :Yes
Rack Mounting Kit :Included
Height (Rack Units) :1
Authentication Method :RADIUS, Secure Shell v.2 (SSH2), TACACS+, Secure Shell (SSH)
Compliant Standards :AS/NZS CISPR 22, AS/NZS CISPR 32, UL 60950-1, WEEE, EN 55032 Class A, CAN/CSA-C22.2 No. 60950-1, China RoHS, CISPR 24, VCCI Class A, EN 300 386, EN 60825-1, ICES-003 Class A, FCC CFR47 Part 15 A, RoHS, EN55024, EN 55022 Class A, IEC 60950-1, GR-1089-CORE, CISPR 22 Class A, BSMI CNS 13438, GR-63-CORE, REACH, CISPR 32 Class A
Dimensions & Weight
Width :17.4 inch
Depth :20.5 inch
Height :1.7 inch
Weight :22.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
