Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks QFX Series

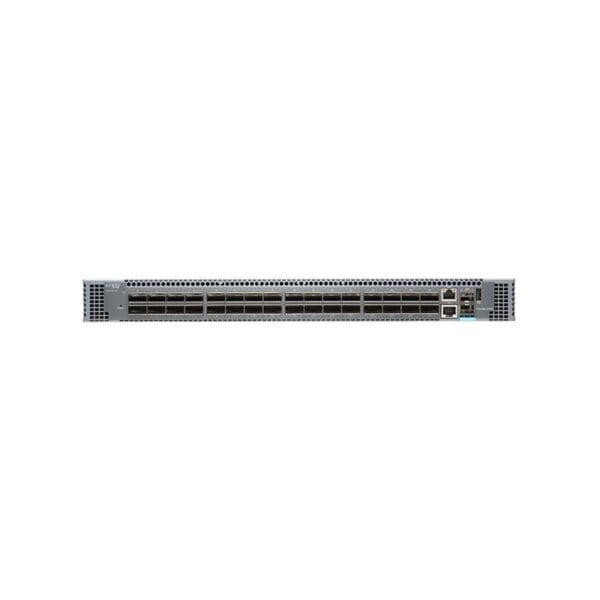

Model :QFX5120-32C
Packaged Quantity :1
Chassis
Airflow Direction :Back to front airflow
Built-in Devices :64 GB SSD
Processor
Manufacturer :Intel
Clock Speed :2.2 GHZ
RAM
Installed Size :16 GB
Performance
Performance :Switching capacity: 3.2 Tbps, Switching latency: 550 ns, Switching capacity: 2 Bpps
Capacity
Capacity :MSTP instances: 64, VLAN IDs: 4093, Mirroring destination VLANs per switch: 4, IPv4 routes (Multicast): 104000, ARP entries: 64000, LAG groups: 80, ECMP paths: 64, IPv6 routes (Unicast, prefixes): 168000, IPv4 routes (Unicast, host routes): 208000, IPv4 routes (Unicast, prefixes): 351000, QoS hardware queues per port: 10, IPv6 routes (Multicast): 52000, VSTP instances: 509, IPv6 routes (Unicast, host routes): 104000, Active ports in LAG: 64, Mirroring destination ports per switch: 4, Host entries: 208000, Maximum number of mirroring sessions: 4
Networking
Type :Switch
Subcategory :Network hubs and switches
Subtype :100 Gigabit Ethernet
Form Factor :Rack-mountable
Stackable :Stackable
Ports Qty :32
Advanced Switching :Layer 3
Routing Protocol :RSVP, IGMPv3, PIM-SM, BGP, IS-IS, PIM-DM, Static IP routing, RIP, PIM-SSM, MPLS, Bidirectional Forwarding Detection (BFD), OSPF, IGMPv2, VRRP, ECMP, MSDP, IGMP
MAC Address Table Size :288K entries
Jumbo Frame Support :9216 bytes
Manageable :Yes
Remote Management Protocol :SSH, OVSDB, Telnet, SNMP 2, CLI, SNMP 3, SNMP 1, gRPC, SSH-2
Features :Packet jitter, Virtual Extensible LAN (VXLAN), Port-based VLAN, Strict Priority Queuing (SPQ), Private VLAN, Zero-touch provisioning (ZTP), DHCP relay, Routed VLAN Interface (RVI), VLAN support, Software Defined Networking (SDN), Weighted Random Early Detection (WRED), sFlow v5, Root Guard, Weighted Tail Drop (WTD), Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Link Aggregation, 32MB packet buffer, DHCP snooping, Store and forward, High Availability, RSVP-based signaling of LSPs, Loop prevention, Bridge protocol data unit (BPDU), Priority-Based Flow Control (PFC), IGMP filtering, Rapid Spanning Tree Protocol (RSTP) support, Ethernet Virtual Private Network (EVPN), Image rollback, Hot swappable fan, FCoE support, Back to front airflow, Data Center Bridging (DCB), Junos Telemetry Interface (JTI), LDP-based signaling of LSPs, MAC based VLAN, IPv6 support, Port filtering, MAC address learning, Traffic mirroring, Smoothed Deficit Weighted Round Robin (SDWRR), Beacon LED, MPLS LSR support, Redundant fans, VLAN Spanning Tree Protocol (VSTP), VLAN trunking, ARP support, VLAN filtering, MPLS support, Data Center Bridging Exchange (DCBX) support, Python runtime, LDP tunneling (LDP over RSVP), Static label-switched paths (LSPs), Spanning Tree Protocol (STP) support, Cut-through, Class of Service (CoS), Multichassis link aggregation (MC-LAG), IGMP snooping, Quality of Service (QoS)
Compliant Standards :IEEE 802.11, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1w, IEEE 802.1Qbb, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1Qaz, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.3x
Ports
Qty :32
Type :100 Gigabit QSFP28 / 40 Gigabit QSFP28
Interface Provided
Interfaces :1 x USB 2.0 Type A, 1 x serial (RS-232) console, 32 x 100Gbit/40Gbit LAN QSFP28, 2 x 10Gbit LAN SFP+, 2 x management RJ-45
Software
Type :Juniper AppFormix, Junos OS
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Power Redundancy :Yes
Power Redundancy Scheme :1+1
Installed Qty :2
Max Supported Qty :2
Power Provided :650 watt
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :380 watt
80 PLUS Certification :80 PLUS Silver
Miscellaneous
Color Category :Gray
Rack Mounting Kit :Included
Height (Rack Units) :1
Authentication Method :TACACS+, RADIUS, Secure Shell v.2 (SSH2), Secure Shell (SSH)
Compliant Standards :UL 62368-1, RoHS 6/6, KN 61000, CISPR 24:2010, EN 300 386 V2.1.1, FCC CFR47 Part 15, WEEE, OCT-16, VCCI-CISPR 32:2016, IEC 62368-1: 2014 Second Edition, CB, CISPR 32:2012, EMC-221, CAN/CSA-C22.2 No. 62368-1-14, REACH, EN 300 386 V1.6.1, EMC 2014/30/EU, AS/NZS CISPR 32:2015, Plug and Play, China RoHS, KN35, EN 55024:2010, ICES-003, BSMI CNS 13438, EN 62368-1:2014, EN 55032:2012, IEC/EN 61000, KN32
Dimensions & Weight
Width :17.3 inch
Depth :20.3 inch
Height :1.7 inch
Weight :21.12 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Min Storage Temperature :-40 degree Fahrenheit
Max Storage Temperature :158 degree Fahrenheit
Humidity Range Operating :5 – 90% (non-condensing)
Humidity Range Storage :0 – 95% (non-condensing)
