Model
Brand
ASUS
Series
ROG
Model

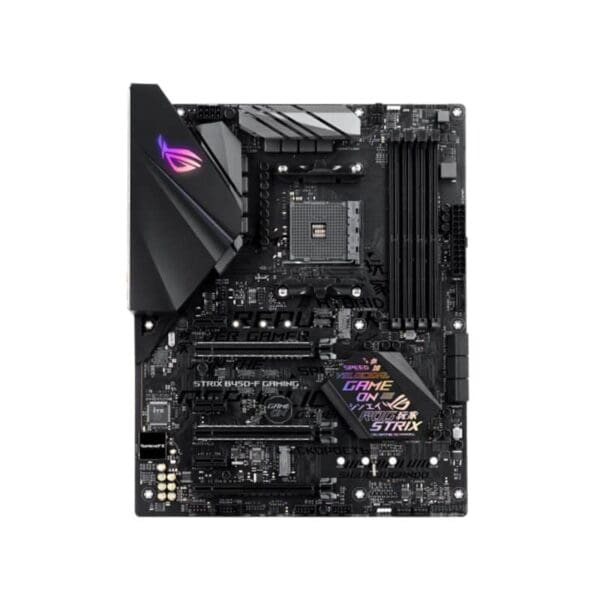

STRIX B450-F GAMING
Supported CPU
CPU Socket Type
AM4
CPU Type
AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors
AMD B450
Memory
Number of Memory Slots
4×288pin
Memory Standard
DDR4 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
Maximum Memory Supported
64GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors:
2 x PCIe 3.0/2.0 x16 (x16 or x8/x4)
AMD Ryzen with Radeon Vega Graphics Processor:
1 x PCIe 3.0/2.0 x16 (x8 mode)
PCI Express 2.0 x16
1 x PCI Express 2.0 x16 slots (max. at x4 mode)
* PCIe x16_3 slot shares bandwidth with PCIe x1_2 and PCIe x1_3.
PCI Express x1
3 x PCI Express 2.0 x1 slots
Storage Devices
SATA 6Gb/s
AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors: *
2 x SATA 6Gb/s port(s)
AMD Ryzen with Radeon Vega Graphics Processor: *
2 x SATA 6Gb/s port(s)
AMD B450 chipset:
4 x SATA 6Gb/s port(s)
* Support StoreMI and NVMe RAID
M.2
AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors: *
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)**
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)***
AMD Ryzen with Radeon Vega Graphics Processor: *
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)**0/1/10
Onboard Video
Onboard Video Chipset
Integrated in the AMD Ryzen with Radeon Vega Graphics Processors
Multi-VGA output support: HDMI / DisplayPort ports
– Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
– Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
Onboard Audio
Audio Chipset
ROG SupremeFX High Definition Audio CODEC S1220A
Audio Channels
8 Channels
Onboard LAN
LAN Chipset
Intel i211AT
Max LAN Speed
10/100/1000Mbps
Rear Panel Ports
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (red) Type-A
4 x USB 3.1 Gen 1 ports (3 x Type-A [blue] and 1 x Type-C)
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Connectors
