General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number WS-C4506E-S6L-96V+
Brand Name Cisco
Product Series C4506E

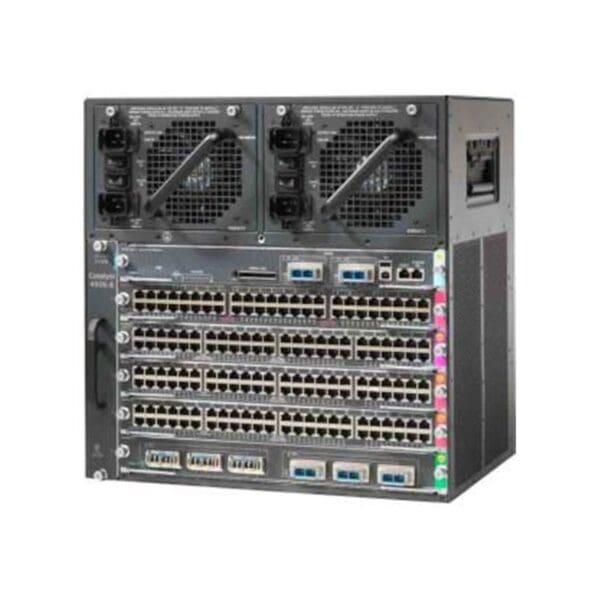

Device Type Switch – 96 ports – L4 – managed – with Cisco Catalyst 4500 Supervisor Engine 6L-E, 2x Cisco Line Cards (WS-X4648-RJ45V+E)
Enclosure Type Rack-mountable – 10U
Subtype Gigabit Ethernet
Ports 96 x 10/100/1000 + 4 x SFP
Power Over Ethernet (PoE) PoE
MAC Address Table Size 55K entries
Routing Protocol RIP-1, RIP-2, EIGRP, static IP routing, MLDv2, MLD
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SSH, SSH-2
Authentication Method Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM 512 MB (installed) / 1 GB (max) – SDRAM
Status Indicators Port status, power, status of modules
Expansion / Connectivity
Interfaces 96 x 1000Base-T – RJ-45 1 x console – RJ-45 – management 1 x 1000Base-T – RJ-45 – management 4 x SFP (mini-GBIC)
Expansion Slots 6 (total) / 3 (free) x expansion slot 1 CompactFlash Card
Installed Modules Qty (Max) 3 (installed) / 6 (max)
Power
Power Device Internal power supply – hot-plug
Installed Qty 1 (installed) / 2 (max)
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Power Consumption Operational 2.8 kW
