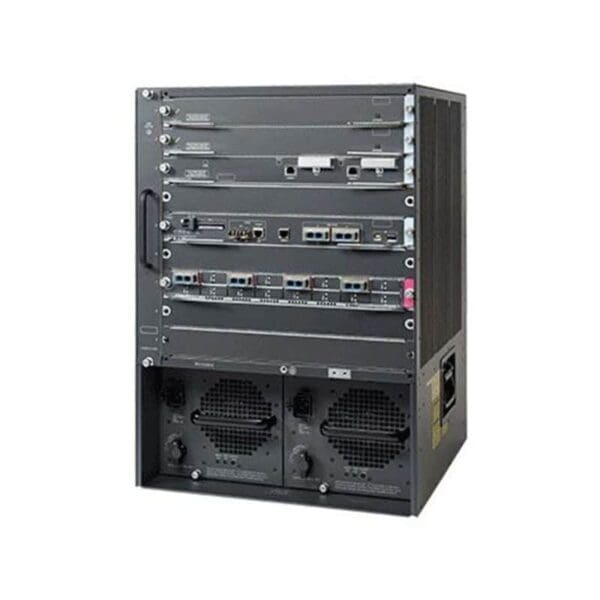

Manufacturer Cisco
Product Line : Cisco Catalyst
Product Series C6509E
Product Type Switch Chassis
Manufacturer Part # WS-C6509E-S32-GE
Device Type Switch – Managed – with Supervisor Engine 32
Enclosure Type Desktop 15U
Interfaces Gigabit Ethernet
Ports 8 x SFP
Routing Protocol GRE
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Compliant Standards IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Dimensions (WxDxH) 44.5 cm x 46 cm x 62.2 cm
General
Device Type Switch – Managed – with Supervisor Engine 32
Enclosure Type Desktop – 15U
Subtype Gigabit Ethernet
Ports 8 x SFP
Routing Protocol GRE
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3
Features NAT support, MPLS support, IPv6 support
Compliant Standards IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
RAM 256 MB (installed) / 1 GB (max)
Flash Memory 256 MB (installed) / 1 GB (max) – Flash
Status Indicators Port status, power, link OK, system, active
Expansion / Connectivity
Interfaces 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – management
2 x USB
8 x SFP (mini-GBIC)
Expansion Slots 9 (total) / 8 (free) x Expansion Slot
Installed Modules Qty (Max) 1 (installed) / 9 (max)
Miscellaneous
Compliant Standards NEBS level 3, FCC Class A certified, VCCI, EN 60950, EN55022, UL 1950, IEC 825-1/EN 60825-1 class 1, IEC 60950, EN55024, CISPR 22, CSA 22.2 No. 60950, ACA TS001, AS/NZS 3260, FCC Part 15, AS/NZS 3548
Dimensions & Weight
Width 44.5 cm
Depth 46 cm
Height 62.2 cm
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 – 90%
