GPU

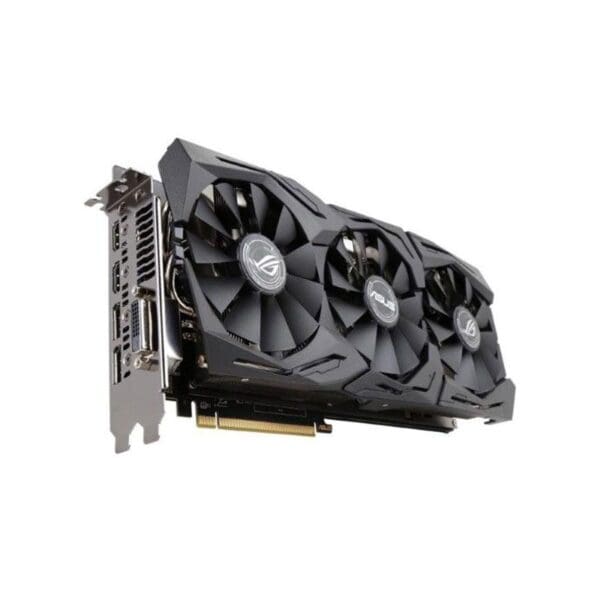

GPU Model AMD Radeon RX 580
Stream Processors 2304
Boost Clock Speed Gaming Mode: 1360 MHz
OC Mode: 1380 MHz
Interface PCI Express 3.0 x16
Supported APIs DirectX: 12
OpenGL: 4.5
Vulkan
Memory
Memory Speed 8 Gb/s
Memory Configuration 8 GB
Memory Interface GDDR5
Memory Interface Width 256-Bit
Memory Bandwidth 256 GB/s
Display Support
Display Connectors 1 x DVI-D DL
2 x DisplayPort 1.4
2 x HDMI 2.0
Maximum Digital Resolution 7680 x 4320
Power Requirements
Max Power Consumption 185 W
PCI Power Connectors 1 x 8-Pin
Recommended System Power Requirement 500 W
Dimensions
Height 5.28″ / 134.00 mm
Length 11.73″ / 298.00 mm
Width Dual-Slot
Packaging Info
Package Weight 4.175 lb
Box Dimensions (LxWxH) 16.25 x 9.3 x 3.5″
