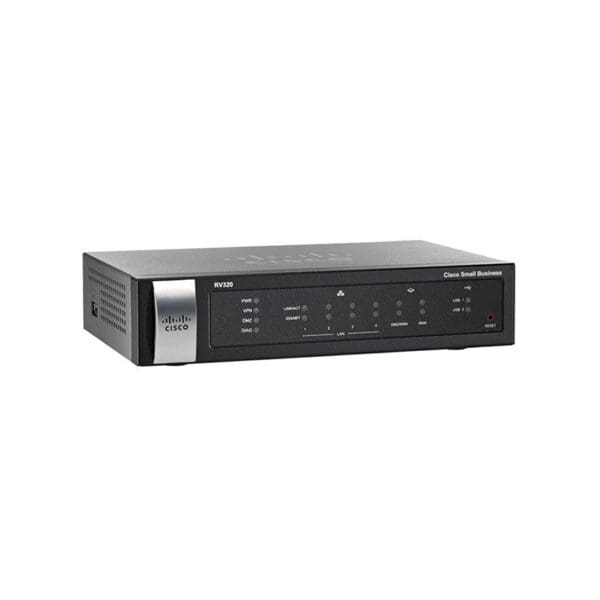

RV320-K9-G5 Cisco Dual Gigabit WAN VPN Router

Cisco Dual Gigabit WAN VPN Router

RV320-K9-G5 Cisco Dual Gigabit WAN VPN Router

Management protocols:

– Web browser (HTTP/HTTPS)

– Simple Network Management Protocol (SNMP) v1, v2c, and v3

– Bonjour

Event logging:

– Local log

– Syslog

– Email alert

– Short Message Service (SMS)

Upgradability:

– Firmware upgradable through the web browser

– Import or export configuration filesfrom or to a USB flash drive

System Specifications

Product dimensions (W x H x D): 206 x 132 x 44 mm (8.1 x 5.2 x 1.7 in)

Ports:

– Four 10/100/1000 Gigabit Ethernet RJ-45 ports

– One 10/100/1000 Gigabit Ethernet RJ-45 Internet (WAN) port

– One 10/100/1000 Gigabit Ethernet RJ-45 DMZ/Internet (WAN) port

Power supply: 12V 1.5A

Certification: FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel

Operating temperature: 0° to 40°C (32° to 104°F)

Storage temperature: 0° to 70°C (32° to 158°F)

Operating humidity: 10% to 85% noncondensing

Storage humidity: 5% to 90% noncondensing

Interfaces

WAN: 1 × 1 GbE

LAN: 4 × 1 GbE (1 optionally available for WAN connectivity)

USB: 1 × USB 2.0 for 3G/4G failover (supported devices)

Performance

Stateful firewall throughput: 200 Mbps

VPN throughput: 70 Mbps

Recommended for small branches (up to 50 users)

Power

Single 18W power supply

Environment

Operating temperature: 32°F to 104°F (0°C to 40°C)

Humidity: 5 to 95% non-condensing
