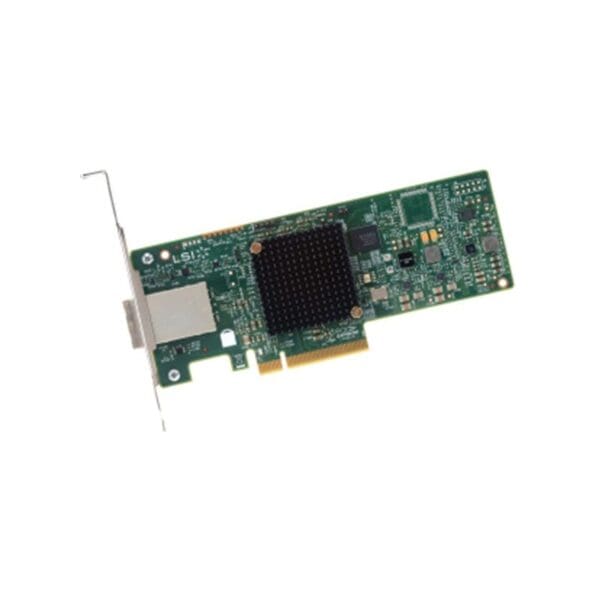

Manufacturer Dell
Manufacturer Part # RX9JT
Host Bus Type X8 Lane Pci Express 3.0
Physical Dimensions Low Profile (2.6” X 6.0”)
Devices Supported 1024 Non-raid Sas/sata Devices
External Connectors 2 Mini-sas Hd Sff8644
Fusion Mpt Support Fusion Mpt 2.5
Operating Temperature 0°c To 55°c
Operating Voltage (v) +12v +/-8%, 3.3v +/-9%
Os Support Microsoft Windows, Linux (suse , Red Hat), Solaris, Vmware , Freebsd See The Downloads Page For Details On Versions The Hba Supports Solaris 10 And Oracle Provides A Built In Driver. Installation Of An Lsi Driver Is Not Required.
Pci Power 14.5w
Cable Support Passive Copper, Active Optical
I/o Controller Lsi Sas3008
Data Transfer Rates 12gb/s Sas-3 Compliant
