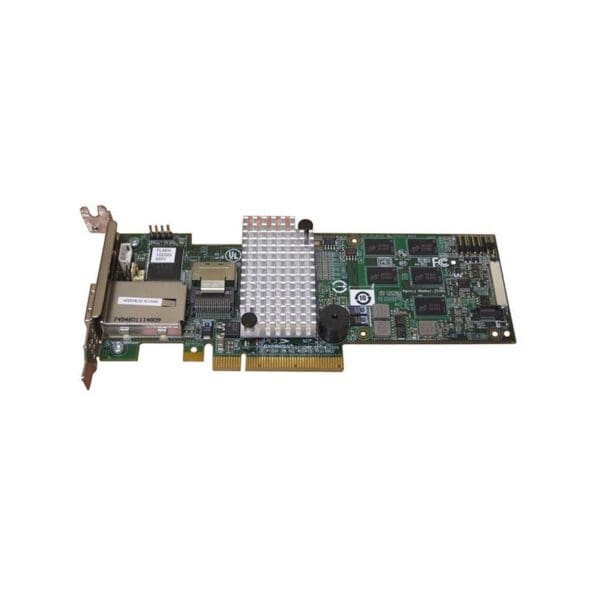

Device Type: Sas Raid Controller
Interfaces: Serial Attached Scsi
Bus Type: Pci Express X8
Data Transfer Rate: 6gb/s Throughput Per Port
Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60
Port: Four Internal + Four External Sata+sas Ports
Standard Memory: 512 Mb Ddr2 Sdram
Drive Support: Up To 240 Sata And/or Sas Devices
Ssd Support With Ssd Guard
Form Factor: Low-profile Plug-in Card
Platform Support: Pc , Solaris
One Mini-sas Sff-8087 X4 Internal Connector
One Mini-sas Sff-8088 External Connector
