SAS9305-24I Broadcom Lsi 12gb/s 24-port Internal Pci Express 3.0 Sas Non-raid Controller

SAS9305-24I Broadcom Lsi 12gb/s 24-port Internal Pci Express 3.0 Sas Non-raid Controller

$730.00

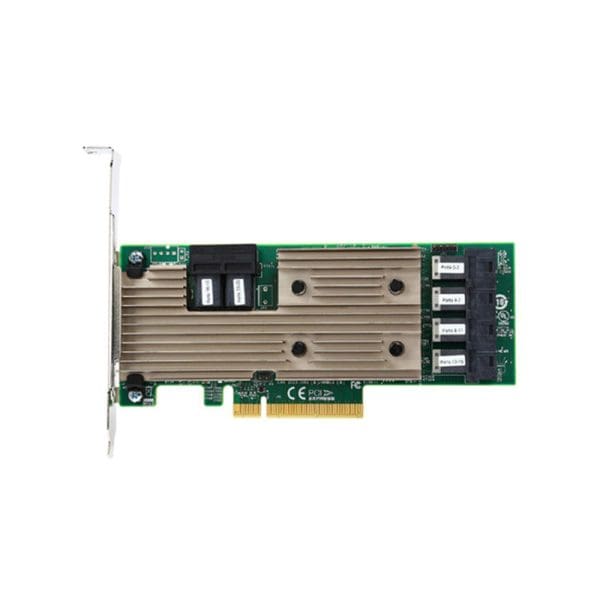

The Broadcom LSI 12GB/s 24-Port Internal PCI Express 3.0 SAS Non-RAID Controller is a high-performance device designed to enable storage devices to communicate with a computer. This device features 24 internal SAS ports that support SAS and SATA drives, and it is designed to provide reliable connectivity for enterprise-level storage applications.

SAS9305-24I Broadcom Lsi 12gb/s 24-port Internal Pci Express 3.0 Sas Non-raid Controller
$730.00
Contact Us

Brand Name: Broadcom

Model Number or SKU# SAS9305-24I

Product Type: Controller

Product Name: SAS-SATA

Main Specifications

Host Bus Type: X8 Lane Pci Express 3.0

Physical Dimensions: 2.7 X 6.6

Devices Supported: 1024 Non-raid Sata/sata Devices Per Controller

Internal Connectors: 6 Mini-sas Hd Sff8643

Internal Ports: 24

Operating Temperature: 0°c To 55°c

Operating Voltage: +12v +/-8%, 3.3v +/-9%

Os Support: Microsoft Windows, Linux (oracle, Suse, Red Hat), Solaris,

vmware, Freebsd, Centos, Canonical

Cable Support: Passive Copper, Active Optical

I/o Controller: Sas3224
