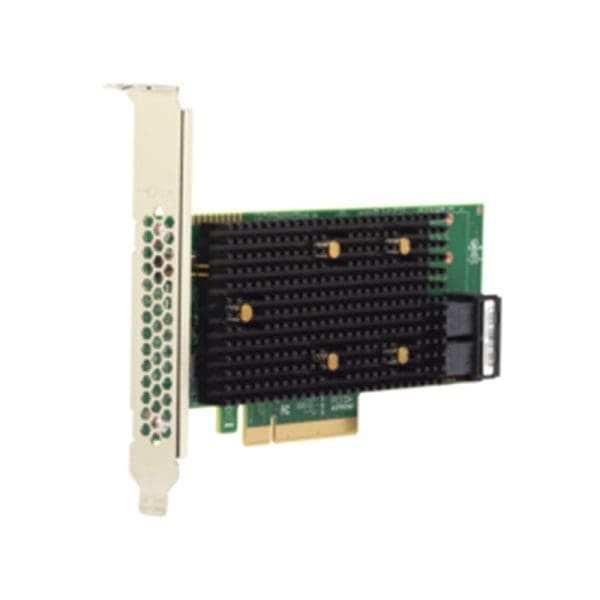

SAS9400-8I Broadcom 12GB/S SAS/SATA/NVME TRI-Mode PCIE HBA

SAS9400-8I Broadcom 12GB/S SAS/SATA/NVME TRI-Mode PCIE HBA

$670.00

The SAS9400-8I Broadcom 12GB/S SAS/SATA/NVME TRI-Mode PCIE HBA is a high-performance Host Bus Adapter (HBA) that provides connectivity to hard disk drives, solid-state drives, and other storage devices. The HBA is designed to meet the demanding needs of enterprise-level data centers, cloud storage environments, and high-performance computing applications.

SAS9400-8I Broadcom 12GB/S SAS/SATA/NVME TRI-Mode PCIE HBA
$670.00
Contact Us

Manufacturer: Broadcom

Type: Controller

Sub-Type: SAS-SATA

Technical Information

Host Bus Type X8 Lane PCI Express® 3.1

Devices Supported SAS/SATA: 1024, NVME: 24

Internal Connectors 2 HD MINI-SAS SFF8643 (Horizontal Mount)

Internal Ports 8

Operating Temperature 10° To 55° C

Operating Voltage +12v +/-8%, 3.3v +/-9%

Os Support Microsoft Windows, Linux, Vmware.

Pci Power Typical: 10.05w

Cable Support Passive Copper

I/O Controller Sas3408

Mtbf > 4,500,000 Hours At 40° C

Operating Humidity 20% To 80% Non-Condensing

SKU: SAS9400-8I Category: Tag:
