Tri-mode connectivity: The adapter supports SAS/SATA/NVMe drives, making it versatile and suitable for various storage solutions.
High-performance data transfer rate: The adapter provides a high-performance data transfer rate of up to 16 GT/s per lane, which is twice the speed of the previous generation.
Large storage capacity: The adapter can connect up to 256 SAS/SATA devices or up to 128 NVMe devices, making it ideal for data centers and other high-performance computing environments.
RAID support: The adapter supports RAID levels 0, 1, 5, 6, 10, 50, and 60, providing users with different options for data protection and redundancy.

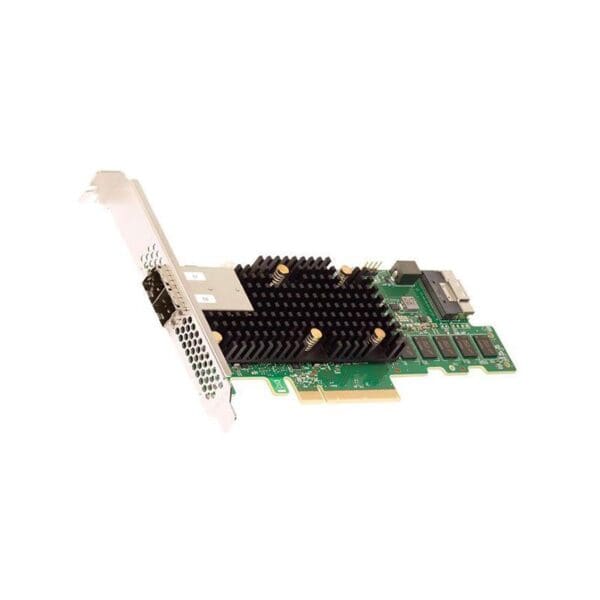

Manufacturer: Broadcom
Part Number or SKU# SAS9580-8I8E
Product Type : Controller
Product Name : SAS-SATA
Technical Information of PCI-E Controller Adapter
Device Type: Raid Controller
Port Count 8 Internal, 8 Externa
Connectors One X8 Sff-8654 2 X4 Sff-8644
Host Interface X8 Pcie Gen 4.0
Storage Interface 12GB/S SAS, 6GB/S SATA, GEN 4.0 PCIE (NVME)
Raid On Chip Controller(roc) SAS3916
Max Devices Per Controller SAS/SATA: 240NVME: 32
Cache Size 8 GB
Cache Protection Cachevault, Cvpm05
