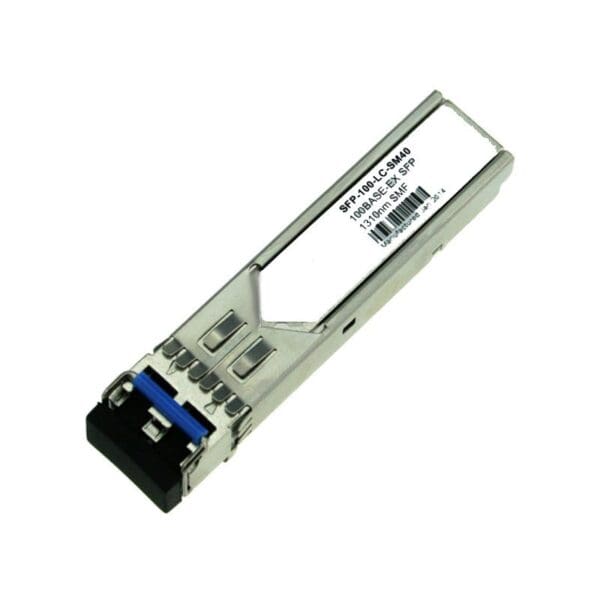

SFP-100-LC-SM40 Alcatel-Lucent Compatible Single mode

SFP-100-LC-SM40 Alcatel-Lucent Compatible Single mode

$341.00

The 100BASE-EX SFP transceiver is tested to be compatible with Alcatel-Lucent networking equipment including Ethernet Switches, Ethernet Routers, Network Interface Cards (NICs) and Ethernet Media Converters. The OSP155-3140DCR-ALU is an ideal equivalent to Alcatel-Lucent SFP-100-LC-SM40 100BASE-EX SFP module with much lower price, which provides a reliable compatible SFP optics transceiver solution for system integrator, distributors and end users in network infrastructure and fiber cabling.

SFP-100-LC-SM40 Alcatel-Lucent Compatible Single mode
$341.00
Contact Us

Media Type: Single-Mode Fiber (SMF)

TX Wavelength: 1310 nm.

RX Wavelength: 1310 nm.

Minimum Optical Budget: 25 dB

Maximum Distance: 40km

Supported Data Rate: 100-155Mbps

Supported Applications: 100M Ethernet (100Mbps), STM-1 (155Mbps)

DDM/DOM: Support

Temperature Range: Standard 0°-70°C

Connectors: Double LC

Tx Wavelength Bandwidth: 100 nm (1260-1360 nm)

Rx Wavelength Bandwidth: 100 nm (1260-1360 nm)

Minimum Transmitting Power: -9 dB

Maximum Transmitting Power: 3 dB

Receiver Sensitivity: -34 dBm

Receiver Overload: -3 dBm

Dispersion: 300-400 ps/nm

Transmitter Type: FP Laser

Receiver Type: PIN photodiode1

Power: +3.3V single power supply

Chipset: MAXIM, MINDSPEED, SEMTECH

Compliance: CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, INF-8074i, RoHS, SFP MSA

Transceiver Type: SFP

SKU: SFP-100-LC-SM40 Category: Tag:
