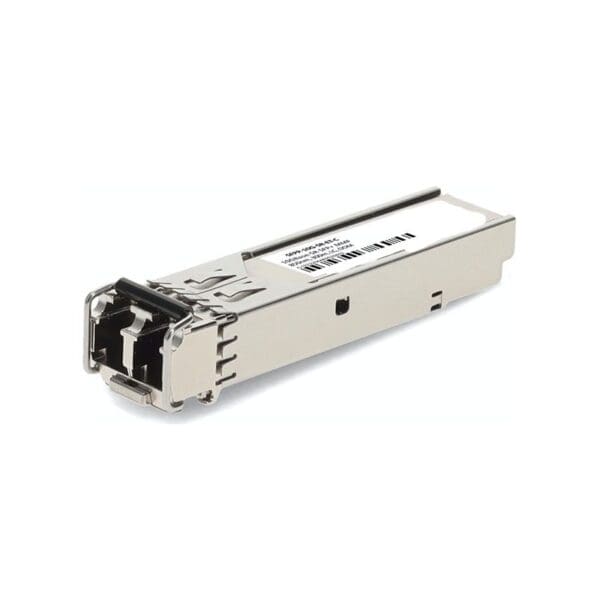

SFPP-10G-SR-ET-C Juniper Sfp+ 10G-SR E-temp Transceiver Module

$94.00

This Juniper Networks® SRX-SFPP-10G-SR-ET SFP+ transceiver provides 10GBase-SR throughput up to 300m over multi-mode fiber (MMF) using a wavelength of 850nm via an LC connector.

SFPP-10G-SR-ET-C Juniper Sfp+ 10G-SR E-temp Transceiver Module
$94.00

Juniper Networks

Part Number(s): SRX-SFPP-10G-SR-ET

Connector: LC

DOM: DOM

Form Type: SFP+

Media: MMF

Reach: 00m

Speed: 10GBase

Speed Description: 10-Gigabit

Transceiver Type: SR

Wavelength: 850nm

MSA compliance (SFF, for e.g. SFF-8665): SFF-8472

Digital Diagnostic Monitoring: Transceiver temperature: Transceiver supply voltage, TX bias current, TX output power, RX received optical power

Signaling rate, each lane: 10.3125 GBd +/- 100 ppm, 9.95328 +/- 20 ppm

Transmitter fibers: 1

Transmitter wavelengths (range): 840 nm to 860 nm

Receive lane wavelengths (range): 840 nm to 860 nm

Transmitter RMS spectral width (maximum): 0.45 nm

Transmitter output power, each lane (minimum): –7.3 dBm

Transmitter output power, each lane (maximum): –1 dBm

Receiver input power, each lane (minimum): –9.9 dBm
