Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS C

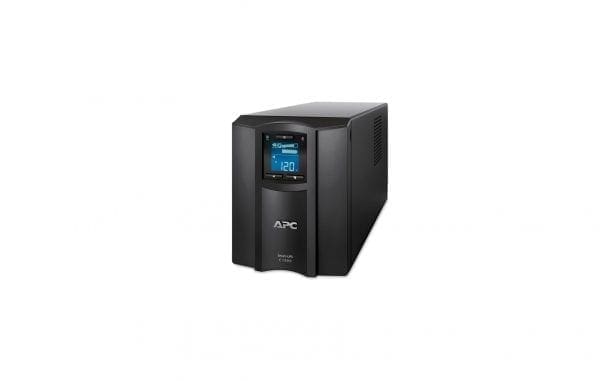

Model :SMC1000C
Bundled with :APC SmartConnect
Country Kits :United States, Canada
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – RJ-45
Cable Details
Cables Included :USB cable – external, Power cable 6 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :600 watt
Power Capacity (VA) :1000 volt ampere per kilogram
Voltage Required :AC 120 volt
Input Voltage Range :AC 93 – 130 V
Input Voltage Range (Adjustable) :AC 85 – 136 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :680 joules
Efficiency :95.6% at 25% Load, 97.6% at 50% Load, 98.4% at 100% Load, 98.1% at 75% Load
Power Device Features :Automatic self-test, Audible alarm, Cold-start function, Hot-swappable batteries, LCD display, Automatic Voltage Regulation (AVR)
Power Output Connectors Details
Power Output Connectors Details :8 x power NEMA 5-15 (UPS)
Battery
Run Time (Up To) :9.2 minute (time unit)
Load Type :At full load
Lead Acid Battery Features :Sealed, Maintenance free, Leak-proof
Run Time Details
Run Time (Up To) :105 min at 50 Watts, 64 min at 100 Watts, 9.2 min at 600 Watts, 22.5 min at 300 Watts, 16 min at 400 Watts, 11.9 min at 500 Watts, 34.7 min at 200 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Equipment Protection Value :150000 US Dollars
Compliant Standards :CSA C22.2 No. 107.1, ICES-003, FCC Class B certified, REACH, UL 1778, RoHS, CSA
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :6.7 inch
Depth :17.3 inch
Height :8.6 inch
Weight :37.48 lbs
Dimensions & Weight (Shipping)
Shipping Width :13 inch
Shipping Depth :23.2 inch
Shipping Height :13 inch
Shipping Weight :43.14 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :41 dBA
