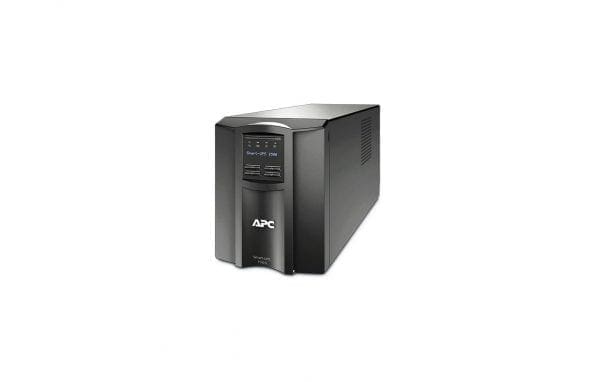

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Model :1500 LCD
Bundled with :APC UPS Network Management Card
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet, RS-232, USB
Expansion Slots
Expansion Slots :1 SmartSlot
Interface Provided
Interfaces :1 x USB – 4 pin USB Type A, Management (Ethernet) – RJ-45, 1 x management (RS-232) – 9 pin D-Sub (DB-9)
Cable Details
Cables Included :Power cable – integrated – 6 ft, USB cable – external, Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :47 – 53 / 57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :1 kilograms per millimetere
Power Capacity (VA) :1440 volt ampere per kilogram 1440VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA 5-15
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15
Output Connector Qty :8
Surge Suppression :Yes
Surge Response Time :0 nanosecond
Surge Energy Rating :459 joules
Circuit Protection :Circuit breaker
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :8 x power NEMA 5-15
Battery
Run Time (Up To) :7 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :7 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :cUL, UL 1449, UL 1778, RoHS Exemption 7b
Dimensions & Weight
Width :6.7 inch
Depth :17.3 inch
Height :8.5 inch
Weight :53.13 lbs
Dimensions & Weight (Shipping)
Shipping Width :13 inch
Shipping Depth :23.2 inch
Shipping Height :14.6 inch
Shipping Weight :59.52 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
