Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS

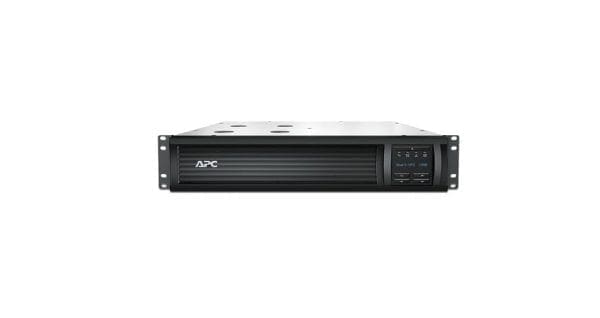

Model :1500 LCD
Bundled with :APC UPS Network Management Card
Packaged Quantity :1
Output
Max Configurable Power (Watts) 1.0kWatts / 1.44kVA 1440VA
Output Voltage Distortion Less than 5%
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Topology Line Interactive
Waveform type Sine wave
Transfer Time 4ms typical : 8ms maximum
Input
Input frequency 50/60 Hz +/- 3 Hz (auto sensing)
Voltage Provided :AC 120V
Input voltage range for main operations 82 – 144V
Input voltage adjustable range for mains operation 75 – 154V
Number of Power Cords 1
Batteries & Runtime
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3hour(s)
Replacement Battery APCRBC133
Expected Battery Life (years) 4 – 6
RBC Quantity 1
Battery Volt-Amp-Hour Capacity 432
Efficiency View Efficiency Graph
Communications & Management
Interface Port(s) RJ-45 10/100 Base-T, RJ-45 Serial, SmartSlot, USB
Pre-Installed SmartSlot™ Cards AP9630
Control panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : configurable delays
Emergency Power Off (EPO) Optional
Available SmartSlot™ Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 459Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
Maximum Height 3.5inches (89MM, 8.9CM)
Maximum Width 17.0inches (432MM, 43.2CM)
Maximum Depth 18.0inches (457MM, 45.7CM)
Net Weight 63.0lbs. (28.64KG)
Shipping weight 70.2lbs. (31.91KG)
Shipping Height 9.88inches (251MM, 25.1CM)
Shipping Width 23.38inches (594MM, 59.4CM)
Shipping Depth 23.75inches (603MM, 60.3CM)
Color Black
Units per Pallet 16.0
Environmental
Operating Temperature 32 – 104 °F (0 – 40 °C)
Operating Relative Humidity 0 – 95 %
Operating Elevation 0-10000ft (0-3000meters)
Storage Temperature -15 – 45 °C
Storage Relative Humidity 0 – 95 %
Storage Elevation 0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit 46.0dBA
Online thermal dissipation 90.0BTU/hr
