Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS

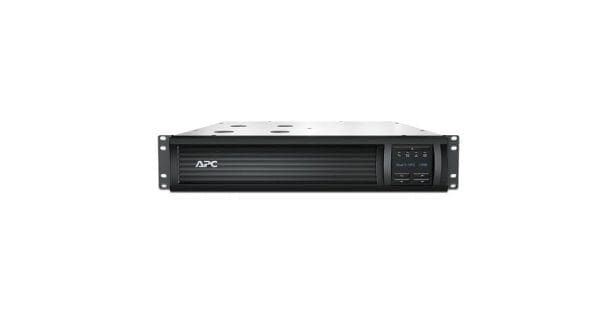

Model :SMT1500RM2UC
Bundled with :APC SmartConnect
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Serial
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included :Power cable – integrated – 8 ft, USB cable – external, Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1 kilograms per millimetere
Power Capacity (VA) :1440 volt ampere per kilogram 1440VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Type :6 x power NEMA 5-15R
Output Connector Qty :6
Surge Suppression :Yes
Switchover Time :6 millisecond
Surge Energy Rating :680 joules
Circuit Protection :Circuit breaker
Efficiency :98.3% at 75% Load, 98.3% at 100% Load, 98.2% at 50% Load, 97.2% at 25% Load
Power Device Features :LED indicators, Audible alarm, Energy meter, Automatic self-test, Hot-swappable batteries, Cold-start function, LCD display, Automatic Voltage Regulation (AVR)
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15R
Battery
Included Qty :1
Run Time (Up To) :7.2 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Sealed, Leak-proof, Maintenance free
Run Time Details
Run Time (Up To) :25.9 min at 500 Watts, 37 min at 400 Watts, 335 min at 50 Watts, 92 min at 200 Watts, 18.8 min at 600 Watts, 8.6 min at 900 Watts, 14 min at 700 Watts, 190 min at 100 Watts, 7.2 min at full load, 10.8 min at 800 Watts, 55.9 min at 300 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :UL 1778, ICES-003, RoHS, CSA C22.2 No. 107.1, REACH, FCC Part 15 Class B, CSA, UL 1449
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :18.8 inch
Height :3.4 inch
Weight :58.42 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.2 inch
Shipping Depth :24 inch
Shipping Height :9.3 inch
Shipping Weight :70.81 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :45 dBA
