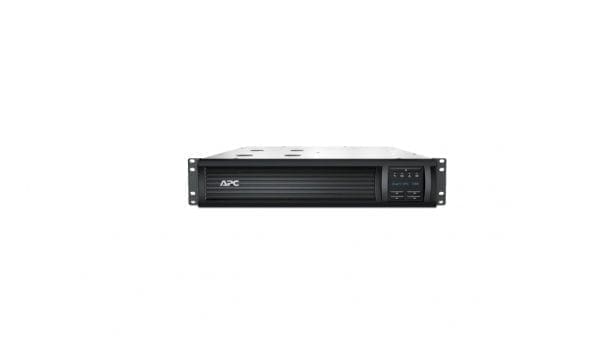

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Output
Max Configurable Power (Watts)
2.7kWatts / 3000VA
Output Voltage Distortion
Less than 5%
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz
Topology
Line Interactive
Waveform type
Sine wave
Transfer Time
4ms typical : 8ms maximum
Input
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input voltage range for main operations
82 – 144V
Input voltage adjustable range for mains operation
75 – 154V
Number of Power Cords 1
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3hour(s)
Replacement Battery RBC43
Expected Battery Life (years) 3 – 5
RBC Quantity 1
Battery Volt-Amp-Hour Capacity 566
Runtime
View Runtime Graph
View Runtime Chart
Efficiency
View Efficiency Graph
Communications & Management
Interface Port(s) USB
Pre-Installed SmartSlot™ Cards AP9630
Control panel
LED status display with On Line : On Battery : Replace Battery and Overload indicators, Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating
459Joules
Physical
Maximum Height
3.39inches (86MM, 8.6CM)
Maximum Width
18.9inches (480MM, 48.0CM)
Maximum Depth
26.89inches (683MM, 68.3CM)
Net Weight
97.42lbs. (44.28KG)
Shipping weight
113.74lbs. (51.7KG)
Shipping Height
10.0inches (254MM, 25.4CM)
Shipping Width
23.62inches (600MM, 60.0CM)
Shipping Depth
38.6inches (980MM, 98.0CM)
Color Black
Units per Pallet 8.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 %
Storage Elevation
0-50000ft (0-15000meters)
Audible noise at 1 meter from surface of unit
55.0dBA
Online thermal dissipation
348.0BTU/hr
