Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS

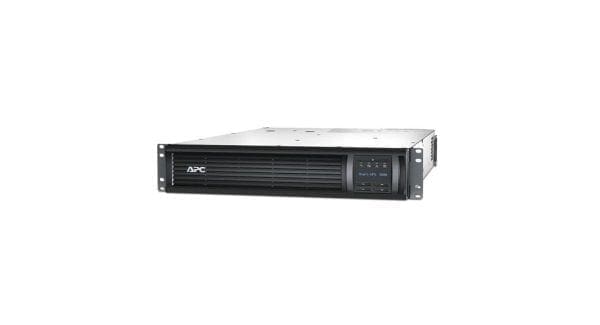

Model :SMT3000RM2UC
Bundled with :APC SmartConnect
Country Kits :Canada, United States
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x USB, 1 x management (RS-232), 1 x EPO (emergency power off)
Cable Details
Cables Included :USB cable – external, Power cable 8 ft, Serial cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120V
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3%
UPS Output Waveform :Sinewave
Power Provided :2.7 kilograms per millimetere
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 110/120/127 volt
Input Voltage Range :AC 82 – 144 V
Input Voltage Range (Adjustable) :AC 75 – 154 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3%
Input Connector Type :Power NEMA L5-30P
Input Connector Qty :1
Output Connector Type :Power NEMA 5-15, Power NEMA 5-20
Output Connector Qty :10
Surge Suppression :Yes
Switchover Time :6 millisecond
Surge Energy Rating :459 joules
Circuit Protection :Circuit breaker
Power Device Features :Automatic Voltage Regulation (AVR), Emergency power off, Cold-start function, Predicitive failure notification, Energy meter, Audible alarm, Hot-swappable batteries, Automatic self-test, LCD display
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15, 2 x power NEMA 5-20
Battery
Run Time (Up To) :2.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Maintenance free, Leak-proof, Sealed
Run Time Details
Run Time (Up To) :5.6 min at 2000 Watts, 31.2 min at 600 Watts, 99 min at 200 Watts, 10.8 min at half load, 181 min at 100 Watts, 38.4 min at 500 Watts, 3.5 min at 2500 Watts, 6.8 min at 1800 Watts, 10.3 min at 1400 Watts, 2.8 min at full load, 8.3 min at 1600 Watts, 26 min at 700 Watts, 259 min at 50 Watts, 49.4 min at 400 Watts, 19 min at 900 Watts, 16.5 min at 1000 Watts, 22 min at 800 Watts, 66 min at 300 Watts, 12.9 min at 1200 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Equipment Protection Value :150000 US Dollars
Compliant Standards :UL 1778, FCC Part 15 A, CSA, UL 1449
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :18.9 inch
Depth :26.9 inch
Height :3.4 inch
Weight :97.62 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :38.6 inch
Shipping Height :10 inch
Shipping Weight :113.98 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
