Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS Li-Ion

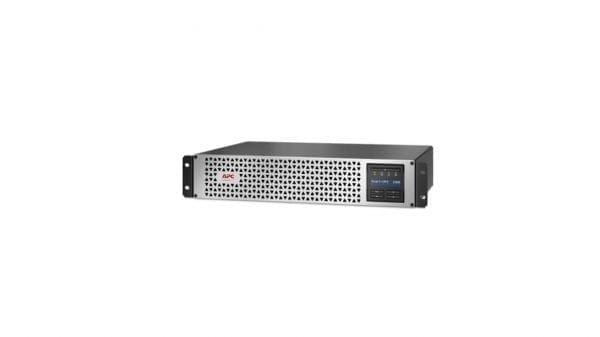

Model :1000VA Short Depth with SmartConnect
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB), 1 x management (RS-232) – RJ-45
Power Device
Form Factor :Rack-mountable
UPS Technology :Line interactive
Voltage Provided :AC 120V
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :800 watt
Power Capacity (VA) :1000 volt ampere per kilogram 1000VA
Voltage Required :AC 120 volt
Input Voltage Range :AC 82 – 144 V
Frequency Required :50/60 hertz
Frequency Required Margin :± 3Hz
Input Connector Type :Power NEMA 5-15P
Input Connector Qty :1
Output Connector Qty :6
Surge Suppression :Yes
Efficiency :96% at 100% Load
Power Device Features :LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-15R
UPS
Battery Technology :Lithium ion
Miscellaneous
Color :Black, Silver
Color Category :Silver, Black
Height (Rack Units) :2
Compliant Standards :IP20, FCC Part 15 A, UL 1778, NOM, UL 1449, CSA C22.2 No. 107.1, RoHS, REACH
Dimensions & Weight
Width :17.2 inch
Depth :12.5 inch
Height :3.4 inch
Weight :33.95 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :45 dBA
