Manufacturer :APC
Brand :APC

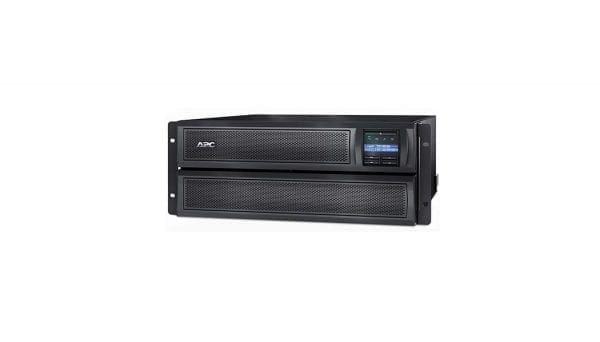

Product Line :APC Smart-UPS X
Model :2200 Rack/Tower LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x USB, 1 x RS-232
Cable Details
Cables Included :Power cable 6 ft, Serial cable, USB cable
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 230 volt
Frequency Provided :47 – 53 / 57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :1980 watt
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 230 volt
Input Voltage Range :AC 140 – 280 V
Frequency Required :50/60 hertz
Input Connector Type :Power IEC 60320 C20
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Surge Energy Rating :645 joules
Circuit Protection :Circuit breaker
Efficiency :98.1%
Power Device Features :Audible alarm, Overload protection, LCD display, Cold-start function, Automatic Voltage Regulation (AVR)
Power Output Connectors Details
Power Output Connectors Details :2 x power IEC 60320 C19, 8 x power IEC 60320 C13
Battery
Run Time (Up To) :9.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :25.3 min at half load, 9.8 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :4
Compliant Standards :IEC 60950, RoHS, REACH, FCC Part 15 A, VDE, EN 50091-1, CSA, C-Tick, GOST, IRAM, UL 1778, EN 50091-2, UL 1449
Dimensions & Weight
Width :17 inch
Depth :19 inch
Height :7 inch
Weight :85.19 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.1 inch
Shipping Depth :24.9 inch
Shipping Height :13 inch
Shipping Weight :105.23 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
