Header
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X

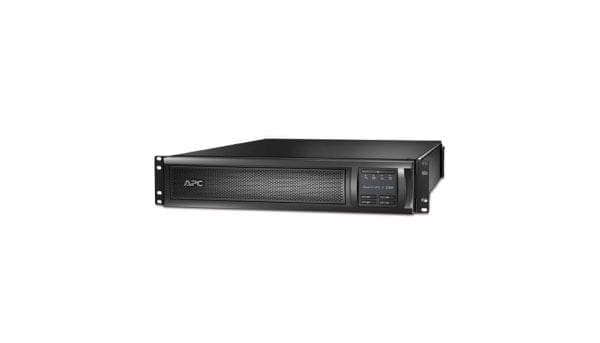

Model :2200 Rack/Tower LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (RS-232) – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off)
Cable Details
Cables Included :Power cable 6 ft, Serial cable, USB cable
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 208/220/230/240 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :1980 watt
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 208/220/230/240 volt
Input Voltage Range :AC 140 – 280 V
Frequency Required :50/60 hertz
Input Connector Type :Europlug (power CEE 7/16), Power IEC 60320 C20, Power BS 1363A
Input Connector Qty :1
Output Connector Qty :9
Surge Suppression :Yes
Switchover Time :4 millisecond
Surge Energy Rating :645 joules
Circuit Protection :Circuit breaker
Power Device Features :Automatic Voltage Regulation (AVR), Automatic self-test, LED indicators, Audible alarm, Emergency power off, Hot-swappable batteries
Power Output Connectors Details
Power Output Connectors Details :8 x power IEC 60320 C13, 1 x power IEC 60320 C19
Battery
Run Time (Up To) :9.8 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :9.8 min at full load, 25.3 min at half load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :IEC 60950, FCC Part 15 A, RoHS, REACH, CSA, IRAM, EN 50091-1, UL 1778, C-Tick, EN 50091-2, UL 1449, VDE, GOST
Dimensions & Weight
Width :17 inch
Depth :26.3 inch
Height :3.3 inch
Weight :82.28 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.5 inch
Shipping Depth :34.2 inch
Shipping Height :9.6 inch
Shipping Weight :100 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
