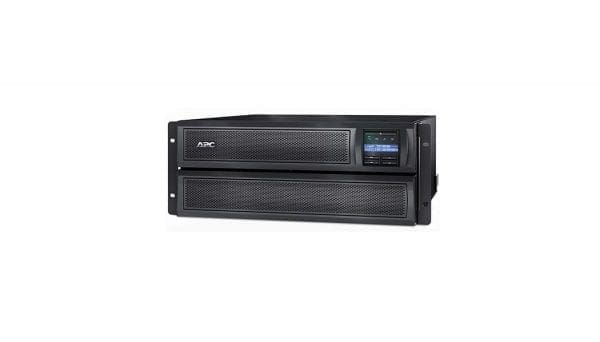

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X
Model :3000 Rack/Tower LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x RS-232, 1 x USB
Cable Details
Cables Included :Power cable 6 ft, Serial cable, USB cable
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 230 volt
Frequency Provided :47 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :2700 watt
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 230 volt
Input Voltage Range :AC 140 – 280 V
Frequency Required :47 – 63 hertz
Input Connector Type :Power IEC 60320 C20
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Surge Energy Rating :645 joules
Circuit Protection :Circuit breaker
Efficiency :98.5%
Power Device Features :LCD display, Overload protection, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :8 x power IEC 60320 C13, 2 x power IEC 60320 C19
Battery
Run Time (Up To) :6.3 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :15.7 min at half load, 6.3 min at full load
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :4
Compliant Standards :GOST, FCC Part 15 A, CSA, RoHS, VDE, IEC 60950, EN 50091-2, EN 50091-1, UL 1449, REACH, UL 1778, C-Tick, IRAM
Dimensions & Weight
Width :7 inch
Depth :19 inch
Height :17 inch
Weight :85.19 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.1 inch
Shipping Depth :24.9 inch
Shipping Height :13 inch
Shipping Weight :105.23 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
