Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS X

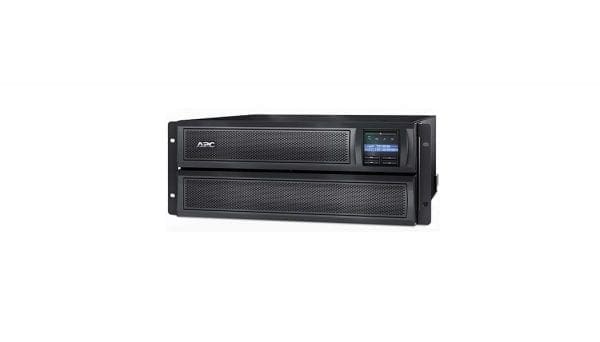

Model :3000VA Short Depth Tower/Rack LCD
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x management (USB) – 4 pin USB Type B, 1 x management (RS-232) – RJ-45
Cable Details
Cables Included :Serial cable – external, USB cable – external, Power cable 6 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable / external
UPS Technology :Line interactive
Voltage Provided :AC 208/220/230/240 volt
Voltage Provided Margin :± 5%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :2700 watt
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 141 – 255 / 160 – 280 V
Frequency Required :50/60 hertz
Input Connector Type :Power IEC 60320 C20, Power BS 1363A, Power CEE 7/7
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :645 joules
Circuit Protection :Circuit breaker
Efficiency :98.2%
Power Device Features :LED indicators, Hot-swappable batteries, LCD display, Automatic Voltage Regulation (AVR), Noise filtering, Emergency power off, Predicitive failure notification, Automatic self-test, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :4 x power IEC 60320 C13, 2 x power IEC 60320 C19, 2 x power NEMA L6-20
Battery
Run Time (Up To) :6 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :6 min at full load, 18 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :4
Compliant Standards :VDE, UL 1778, GOST, CSA, IRAM, UL 1449, EN 50091-2, EN 60950, RoHS, C-Tick, FCC Part 15 A, REACH, EN 50091-1
Dimensions & Weight
Width :7 inch
Depth :19 inch
Height :17 inch
Weight :85.19 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.1 inch
Shipping Depth :24.9 inch
Shipping Height :13 inch
Shipping Weight :105.23 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
