Manufacturer :APC
Brand :APC

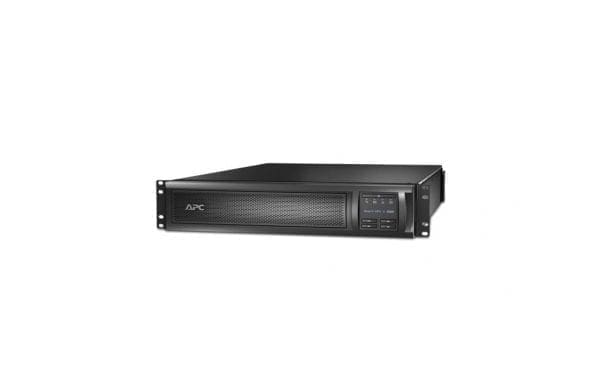

Product Line :APC Smart-UPS X
Model :3000 Rack/Tower LCD
Bundled with :APC UPS Network Management Card AP9631
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :RS-232, Ethernet 10/100, USB
Remote Management Protocol :SSH, SNMP 3, HTTPS, SNMP 2c, SNMP 1, HTTP, SSH-2, Telnet
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x RS-232, 1 x EPO (emergency power off), 1 x USB, 1 x management (Ethernet) – RJ-45
Cable Details
Cables Included :USB cable, Serial cable, Power cable – integrated – 8 ft
Software
Type :Drivers & Utilities
Power Device
Form Factor :External
UPS Technology :Line interactive
Voltage Provided :AC 120 volt
Frequency Provided :47 – 53 / 57 – 63 hertz
UPS Output Waveform :Sinewave
Power Provided :2.7 kilograms per millimetere
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 120 volt
Frequency Required :50/60 hertz
Input Connector Type :Power NEMA L5-30
Output Connector Qty :7
Surge Suppression :Yes
Surge Energy Rating :540 joules
Power Device Features :LCD display, Audible alarm, Predicitive failure notification, LED indicators, Cold-start function, Overload protection, Automatic Voltage Regulation (AVR), Emergency power off, Hot-swappable batteries, Automatic self-test
Power Output Connectors Details
Power Output Connectors Details :1 x power NEMA L5-30, 3 x power NEMA 5-20, 3 x power NEMA 5-15
Battery
Run Time (Up To) :6 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Run Time Details
Run Time (Up To) :18 min at half load, 6 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :2
Equipment Protection Value :150000 US Dollars
Compliant Standards :CSA, VCCI Class A ITE, UL 1449, RoHS Exemption 7b, EN 50091-2, EN55022 Class A, FCC Class A certified, UL 1778, NOM, FCC Part 15, TUV, BSMI, REACH
Dimensions & Weight
Width :17 inch
Depth :26.3 inch
Height :3.3 inch
Weight :84.77 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.5 inch
Shipping Depth :34.2 inch
Shipping Height :9.6 inch
Shipping Weight :100.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95%
Sound Emission :55 dBA
