Manufacturer :APC
Brand :APC

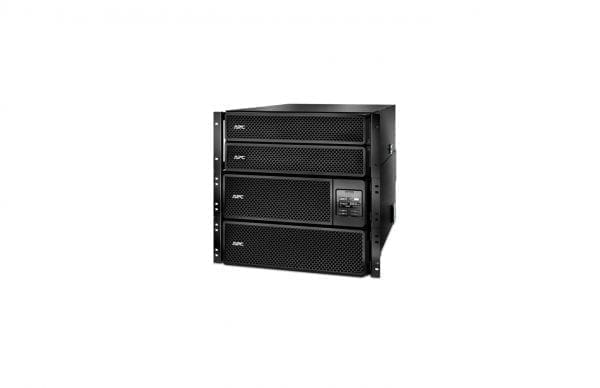

Product Line :APC Smart-UPS SRT
Model :10000VA RM
Bundled with :208/240V to 120V 10kVA Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Ethernet 10/100
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x serial – RJ-45, 1 x EPO (emergency power off), 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 208/240 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :10 kilograms per millimetere
Power Capacity (VA) :10000 volt ampere per kilogram 10000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Output Connector Type :Power NEMA L14-30, Power NEMA L6-30, Hardwire 3-wire (2PH + G), Power NEMA L5-20, Power NEMA L6-20, Hardwire 4-wire (2PH+N+G)
Output Connector Qty :12
Surge Suppression :Yes
Surge Energy Rating :480 joules
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L6-30, 2 x power NEMA L5-20, 4 x power NEMA L6-20, 1 x hardwire 3-wire (2PH + G), 2 x power NEMA L14-30, 1 x hardwire 4-wire (2PH+N+G)
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :1.5 hour(s)
Lead Acid Battery Features :Maintenance free, Leak-proof, Sealed
Run Time Details
Run Time (Up To) :4 min at full load, 11 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :10
Rack Size :19″
Rack Size (metric) :48.3 cm
Compliant Standards :UL 1778, CSA C22.2 No. 107.3, IP20, FCC Part 15 A, REACH, RoHS
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :29.5 inch
Height :17.2 inch
Weight :465.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :39.4 inch
Shipping Height :34.1 inch
Shipping Weight :561 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
