Manufacturer :APC
Brand :APC

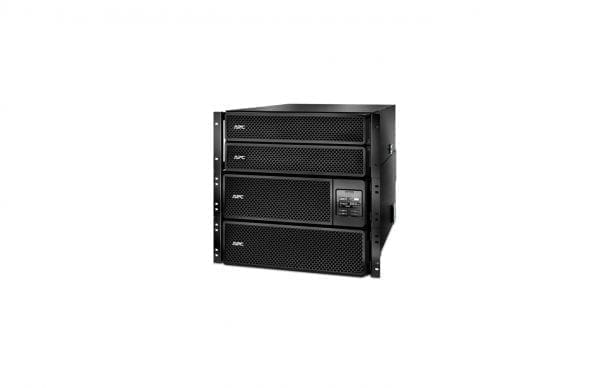

Product Line :APC Smart-UPS SRT
Model :10000VA RM
Bundled with :2x 208/240V to 120V Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B, 1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off), 1 x serial – RJ-45
Cable Details
Cables Included :USB cable – external
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 208 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :10 kilograms per millimetere
Power Capacity (VA) :10000 volt ampere per kilogram 10000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Input Connector Qty :1
Output Connector Type :Power NEMA L6-30, Power NEMA L6-20
Output Connector Qty :7
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :94.5% at 50% Load, 94.3% at 75% Load, 93.5% at 25% Load, 93.8% at 100% Load
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :4 x power NEMA L6-20, 1 x hardwire 3-wire (2PH + G), 2 x power NEMA L6-30
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :1.5 hour(s)
Lead Acid Battery Features :Leak-proof, Sealed, Maintenance free
Run Time Details
Run Time (Up To) :4 min at full load, 11 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :6
Compliant Standards :UL 1778, CSA C22.2 No. 107.3, FCC Part 15 A, REACH, IP20, RoHS, NOM
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.1 inch
Height :17.4 inch
Weight :436 lbs
Dimensions & Weight (Shipping)
Shipping Width :24.5 inch
Shipping Depth :39.4 inch
Shipping Height :41.7 inch
Shipping Weight :511.8 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
