Manufacturer :APC
Brand :APC

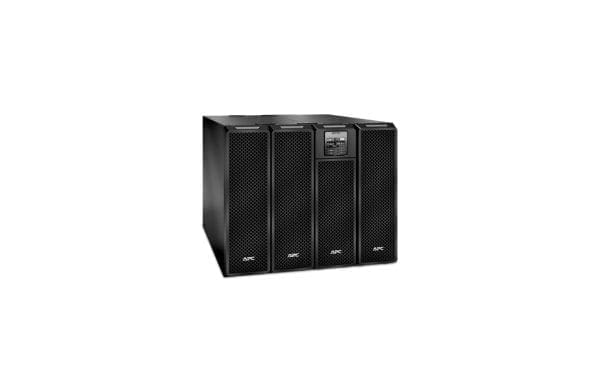

Product Line :APC Smart-UPS SRT
Model :10000VA
Bundled with :2x 208/240V to 120V Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Ethernet 10/100
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB) – 4 pin USB Type B, 1 x serial – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off)
Cable Details
Cables Included :USB cable – external
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 208 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :10 kilograms per millimetere
Power Capacity (VA) :10000 volt ampere per kilogram 10000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Input Connector Qty :1
Output Connector Type :Power NEMA L6-30, Power NEMA L6-20, Hardwire 3-wire (2PH + G)
Output Connector Qty :7
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :93.5% at 25% Load, 94.5% at 50% Load, 94.3% at 75% Load, 93.8% at 100% Load
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (2PH + G), 2 x power NEMA L6-30, 4 x power NEMA L6-20
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :1.5 hour(s)
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :11 min at half load, 4 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Compliant Standards :RoHS, IP20, FCC Part 15 A, REACH, NOM, UL 1778, CSA C22.2 No. 107.3
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :10.4 inch
Depth :28.1 inch
Height :17 inch
Weight :245.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :39.4 inch
Shipping Height :18.1 inch
Shipping Weight :278.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
