Manufacturer :APC
Brand :APC

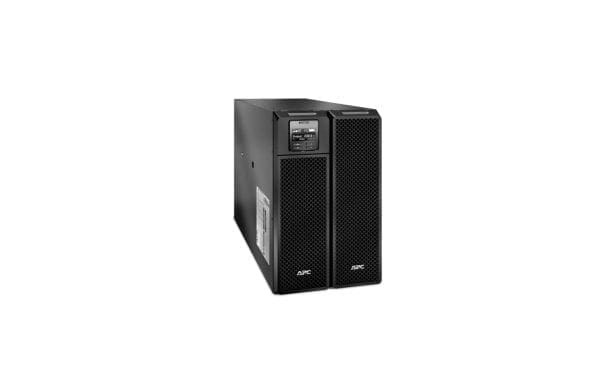

Product Line :APC Smart-UPS SRT
Model :10000VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x management (Ethernet) – RJ-45
Power Device
Form Factor :Rack-mountable / external
UPS Technology :On-line
Voltage Provided :AC 208 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :10 kilograms per millimetere
Power Capacity (VA) :10000 volt ampere per kilogram 10000VA
Voltage Required :AC 208 volt
Frequency Required :45 – 65 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Output Connector Qty :14
Surge Suppression :Yes
Surge Energy Rating :480 joules
Power Device Features :LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :3 x IEC connector, 6 x power IEC 60320 C13, 4 x power IEC 60320 C19, 1 x hardwire 3-wire (2PH + G)
Battery
Recharge Time :1.5 Hours
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :6
Compliant Standards :C-Tick, EN 50091-2, RoHS, EAC, IP20, EN 50091-1, REACH, IEC 60950, VDE, EN 62040-2
Dimensions & Weight
Width :10.4 inch
Depth :28.1 inch
Height :17 inch
Weight :245.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :3.3 ft
Shipping Height :18.1 inch
Shipping Weight :278.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
