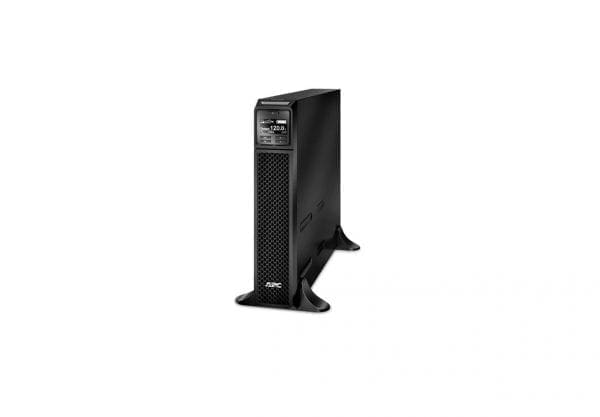

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :2200VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, RS-232
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (USB), 1 x management (RS-232) – RJ-45, 1 x EPO (emergency power off)
Cable Details
Cables Included :Power cable 6 ft, USB cable – external
Software
Type :APC PowerChute
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 120 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
Frequency Provided Margin :± 3Hz
UPS Output Waveform :Sinewave
Power Provided :1800 watt
Power Capacity (VA) :2200 volt ampere per kilogram 2200VA
Voltage Required :AC 120 volt
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA 5-20P
Input Connector Qty :1
Output Connector Qty :7
Surge Suppression :Yes
Surge Energy Rating :340 joules
Circuit Protection :Circuit breaker
Efficiency :87.7% at 25% Load, 91.7% at 100% Load, 91.1% at 50% Load, 91.7% at 75% Load
Power Device Features :Lightning protection, Generator compatible, Automatic self-test, Hot-swappable batteries, Cold-start function, Auto restart, Audible alarm, Reset breaker, Internal bypass, LCD display, LED indicators, Energy meter
Power Output Connectors Details
Power Output Connectors Details :6 x power NEMA 5-20R (UPS and surge), 1 x power NEMA L5-20R (UPS and surge)
Battery
Voltage Provided :72 volt
Run Time (Up To) :3.3 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Leak-proof, Sealed, Maintenance free
Run Time Details
Run Time (Up To) :10.3 min at 900 Watts, 59.5 min at 200 Watts, 10.3 min at half load, 6 min at 1300 Watts, 8.9 min at 1000 Watts, 3.3 min at full load, 14.4 min at 700 Watts, 21.8 min at 500 Watts, 4.1 min at 1600 Watts
UPS
Batteries Qty :1
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Tower stand
Compliant Standards :RoHS, CSA C22.2 No.107.3-05, REACH, FCC Part 15 A, UL 1778, IP20
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :3.3 inch
Depth :23 inch
Height :17 inch
Weight :55.12 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :31.9 inch
Shipping Height :9.7 inch
Shipping Weight :67.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
