Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT

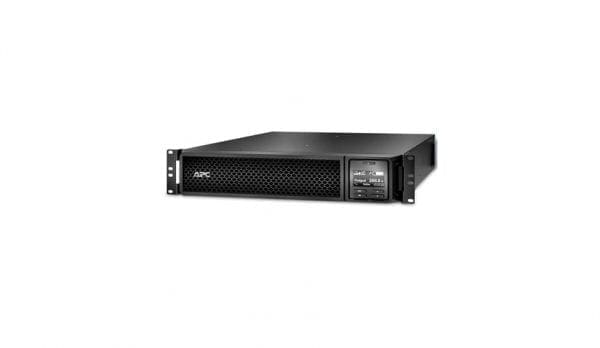

Model :3000VA RM Network Card
Bundled with :APC UPS Network Management Card AP9631
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB
Expansion Slots
Expansion Slots :1 (total) / 0 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Fast Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type A, 1 x serial – RJ-45, 1 x EPO (emergency power off)
Cable Details
Cables Included :Power cable 6 ft, USB cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 208/240 volt
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :2700 watt
Power Capacity (VA) :3000 volt ampere per kilogram 3000VA
Voltage Required :AC 208/240 volt
Input Voltage Range :AC 160 – 275 V
Input Voltage Range (Adjustable) :AC 100 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA L6-20
Input Connector Qty :1
Output Connector Type :Power NEMA L6-20, Power NEMA L6-30
Output Connector Qty :3
Surge Suppression :Yes
Surge Energy Rating :340 joules
Power Device Features :Audible alarm, Internal bypass, LCD display
Power Output Connectors Details
Power Output Connectors Details :1 x power NEMA L6-30, 2 x power NEMA L6-20
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :4 min at full load, 11 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Rack mounting rails
Rack Mounting Kit :Included
Height (Rack Units) :2
Compliant Standards :IP20, RoHS, UL 1778, REACH, CSA C22.2 No. 107.3, FCC Part 15 A
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :25 inch
Height :3.3 inch
Weight :69 lbs
Dimensions & Weight (Shipping)
Shipping Width :23.6 inch
Shipping Depth :34.3 inch
Shipping Height :9.7 inch
Shipping Weight :88.01 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
