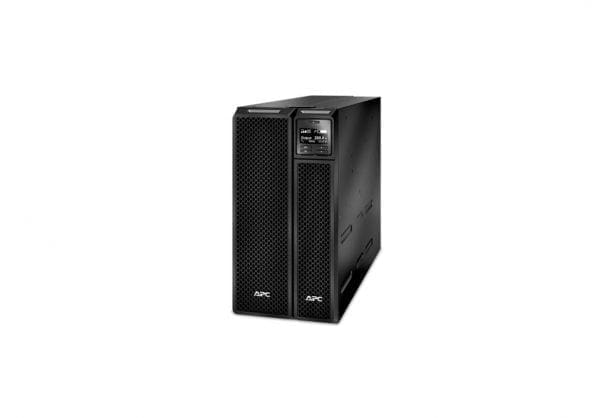

SRT3000XLT-5KTF APC Smart-UPS SRT 3000VA Step-Down Transformer

SRT3000XLT-5KTF APC Smart-UPS SRT 3000VA Step-Down Transformer

$4,562.00

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extreme

SRT3000XLT-5KTF APC Smart-UPS SRT 3000VA Step-Down Transformer
$4,562.00
Contact Us

Manufacturer :APC

Brand :APC

Product Line :APC Smart-UPS SRT

Model :3000VA

Bundled with :208/240V to 120V Step-Down Transformer

Packaged Quantity :1

General

Subcategory :UPS

Product Type :UPS

Networking

Remote Management Interface :USB

Expansion Slots

Expansion Slots :1 (total) / 1 (free) x SmartSlot

Interface Provided

Interfaces :1 x management (USB) – 4 pin USB Type A, 1 x serial – RJ-45, 1 x EPO (emergency power off)

Cable Details

Cables Included :USB cable – external, Power cable – integrated – 6 ft

Software

Type :Drivers & Utilities

Power Device

Form Factor :External

UPS Technology :On-line

Voltage Provided :AC 120/208/240 volt

Voltage Provided Margin :± 2%

Frequency Provided :50/60 hertz

UPS Output Waveform :Sinewave

Power Provided :2700 watt

Power Capacity (VA) :3000 volt ampere per kilogram 3000VA

Voltage Required :AC 208/240 volt

Input Voltage Range :AC 160 – 275 V

Frequency Required :40 – 70 hertz

Input Connector Type :Power NEMA L6-20

Input Connector Qty :1

Output Connector Type :Power NEMA 5-20, Power NEMA L14-30, Power NEMA L6-30, Power NEMA L6-20

Output Connector Qty :14

Surge Suppression :Yes

Surge Energy Rating :340 joules

Power Device Features :Internal bypass, Audible alarm, LCD display

Power Output Connectors Details

Power Output Connectors Details :1 x power NEMA L6-30, 1 x power NEMA L14-30, 8 x power NEMA 5-20, 4 x power NEMA L6-20

Battery

Run Time (Up To) :3.8 minute (time unit)

Load Type :At full load

Recharge Time :3 Hours

Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed

Run Time Details

Run Time (Up To) :3.8 min at full load, 11.4 min at half load

UPS

Battery Technology :Lead acid

Miscellaneous

Color :Black

Color Category :Black

Compliant Standards :FCC Part 15 A, REACH, IP20, RoHS, UL 1778

Environmental Standards

ENERGY STAR :Yes

Dimensions & Weight

Width :8.5 inch

Depth :25 inch

Height :17 inch

Weight :194 lbs

Dimensions & Weight (Shipping)

Shipping Width :23.7 inch

Shipping Depth :38.6 inch

Shipping Height :23.4 inch

Shipping Weight :220.99 lbs

Environmental Parameters

Min Operating Temperature :32 degree Fahrenheit

Max Operating Temperature :104 degree Fahrenheit

Humidity Range Operating :0 – 95% (non-condensing)

Sound Emission :55 dBA
