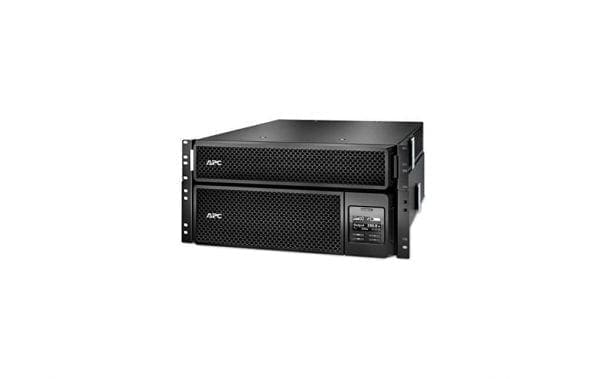

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :5000VA RM
Bundled with :208V to 120V Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Ethernet 10/100
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x management (Ethernet) – RJ-45, 1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x EPO (emergency power off)
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 120/208/240 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :4250 watt, 4800 watt
Power Capacity (VA) :5000 volt ampere per kilogram 5000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA L6-30
Input Connector Qty :1
Output Connector Type :Power NEMA 5-20, Power NEMA L6-30, Power NEMA L6-20
Output Connector Qty :16
Surge Suppression :Yes
Surge Energy Rating :480 joules
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :2 x power NEMA L6-20, 1 x power NEMA L6-30, 12 x power NEMA 5-20
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :1.5 hour(s)
Lead Acid Battery Features :Maintenance free, Sealed, Leak-proof
Run Time Details
Run Time (Up To) :13 min at half load, 4 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Rack Mounting Kit :Included
Height (Rack Units) :5
Rack Size :19″
Rack Size (metric) :48.3 cm
Compliant Standards :RoHS, UL 1778, REACH, FCC Part 15 A, IP20, CSA C22.2 No. 107.3
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.3 inch
Height :8.6 inch
Weight :217.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :24.5 inch
Shipping Depth :37.8 inch
Shipping Height :23 inch
Shipping Weight :259.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
