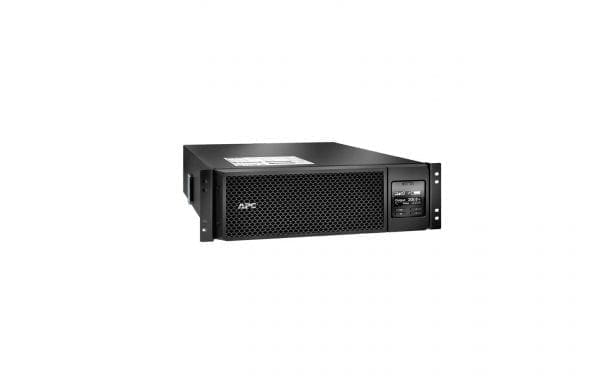

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :5000VA RM
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Remote Management Protocol :SNMP, HTTP
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x management (Ethernet) – RJ-45
Cable Details
Cables Included :USB cable – external, Power cable 10 ft
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 208/220/240 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :4250 watt
Power Capacity (VA) :5000 volt ampere per kilogram 5000VA
Voltage Required :AC 208/220/240 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Power NEMA L6-30
Input Connector Qty :1
Output Connector Qty :10
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :93.2% at 50% Load, 93.2% at 100% Load, 91.2% at 25% Load, 93.4% at 75% Load
Power Device Features :Internal bypass, Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :4 x power IEC 60320 C13, 2 x power, 4 x power IEC 60320 C19
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :1.5 Hours
Lead Acid Battery Features :Leak-proof, Maintenance free, Sealed
Run Time Details
Run Time (Up To) :4 min at full load, 13 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Rack mounting rails
Rack Mounting Kit :Included
Height (Rack Units) :3
Compliant Standards :UL 1778, REACH, IP20, RoHS, FCC Part 15 A, CSA C22.2 No. 107.3
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.3 inch
Height :5.1 inch
Weight :122.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :37.8 inch
Shipping Height :13 inch
Shipping Weight :150 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
