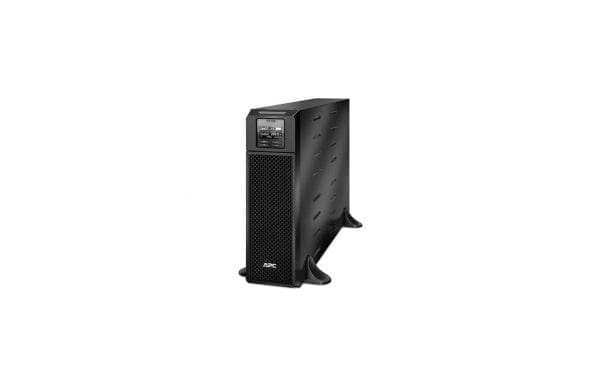

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :5000VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :USB, Ethernet 10/100
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x serial – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B
Power Device
Form Factor :Rack-mountable / external
UPS Technology :On-line
Voltage Provided :AC 230 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :4500 watt
Power Capacity (VA) :5000 volt ampere per kilogram 5000VA
Voltage Required :AC 230 volt
Frequency Required :45 – 65 hertz
Input Connector Type :Hardwire 3-wire (1PH + N + G)
Input Connector Qty :1
Output Connector Qty :12
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :98%
Power Device Features :Audible alarm, LCD display
Power Output Connectors Details
Power Output Connectors Details :2 x IEC connector, 4 x power IEC 60320 C19, 6 x power IEC 60320 C13
Battery
Run Time (Up To) :4 minute (time unit)
Load Type :At full load
Recharge Time :3 Hours
Lead Acid Battery Features :Sealed, Maintenance free, Leak-proof
Run Time Details
Run Time (Up To) :4 min at full load, 11.8 min at half load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Height (Rack Units) :3
Compliant Standards :VDE, EN 62040-2, IP20, C-Tick, EN 50091-1, EAC, IEC 60950, REACH, RoHS, EN 50091-2
Dimensions & Weight
Width :5.1 inch
Depth :28.3 inch
Height :17 inch
Weight :120.26 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :37.8 inch
Shipping Height :13 inch
Shipping Weight :139.99 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
