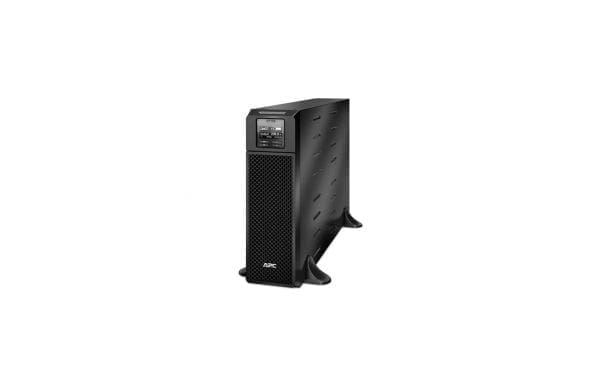

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :5000VA
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Remote Management Protocol :SNMP
Expansion Slots
Expansion Slots :1 SmartSlot
Interface Provided
Interfaces :1 x serial – RJ-45, 1 x management (USB) – 4 pin USB Type B, 1 x management (Ethernet) – RJ-45, 1 x EPO (emergency power off)
Cable Details
Cables Included :USB cable – external, Power cable 10 ft
Power Device
Form Factor :External
UPS Technology :On-line
Voltage Provided :AC 208 volt
Voltage Provided Margin :± 3%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :4250 watt
Power Capacity (VA) :5000 volt ampere per kilogram 5000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :45 – 65 hertz
Input Connector Type :Power NEMA L6-30
Input Connector Qty :1
Output Connector Qty :8
Surge Suppression :Yes
Surge Energy Rating :480 joules
Power Device Features :Audible alarm, Internal bypass, LCD display
Power Output Connectors Details
Power Output Connectors Details :4 x power IEC 60320 C19, 4 x power IEC 60320 C13
Battery
Run Time (Up To) :4.4 minute (time unit)
Load Type :At full load
Recharge Time :1.5 Hours
Lead Acid Battery Features :Leak-proof, Sealed, Maintenance free
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Temperature sensor
Compliant Standards :REACH, IP20, UL 1778, FCC Part 15 A, RoHS
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :5.1 inch
Depth :28.3 inch
Height :17 inch
Weight :122.99 lbs
Dimensions & Weight (Shipping)
Shipping Width :24 inch
Shipping Depth :37.8 inch
Shipping Height :13 inch
Shipping Weight :142 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
