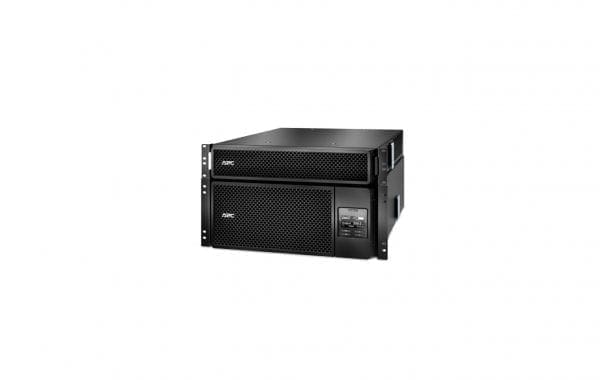

Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :6000VA RM
Bundled with :208/240V to 120V Step-Down Transformer
Packaged Quantity :1
General
Subcategory :UPS
Product Type :UPS
Networking
Remote Management Interface :Ethernet 10/100, USB
Expansion Slots
Expansion Slots :1 (total) / 1 (free) x SmartSlot
Interface Provided
Interfaces :1 x EPO (emergency power off), 1 x serial – RJ-45, 1 x management (Ethernet) – RJ-45, 1 x management (USB) – 4 pin USB Type B
Cable Details
Cables Included :USB cable – external
Software
Type :Drivers & Utilities
Power Device
Form Factor :Rack-mountable
UPS Technology :On-line
Voltage Provided :AC 120/208 volt
Voltage Provided Margin :± 2%
Frequency Provided :50/60 hertz
UPS Output Waveform :Sinewave
Power Provided :6000 watt
Power Capacity (VA) :6000 volt ampere per kilogram 6000VA
Voltage Required :AC 208 volt
Input Voltage Range :AC 160 – 275 V
Frequency Required :40 – 70 hertz
Input Connector Type :Hardwire 3-wire (2PH + G)
Input Connector Qty :1
Output Connector Type :Power NEMA L6-20, Power NEMA L6-30, Power NEMA 5-20R, Hardwire 3-wire (2PH + G)
Output Connector Qty :17
Surge Suppression :Yes
Surge Energy Rating :480 joules
Efficiency :92.7% at 25% Load, 93.7% at 100% Load, 94.1% at 50% Load, 94% at 75% Load
Power Device Features :LCD display, Audible alarm
Power Output Connectors Details
Power Output Connectors Details :1 x hardwire 3-wire (2PH + G), 2 x power NEMA L6-30, 2 x power NEMA L6-20, 12 x power NEMA 5-20R
Battery
Run Time (Up To) :2 minute (time unit)
Load Type :At full load
Recharge Time :1.5 Hours
Lead Acid Battery Features :Leak-proof, Sealed, Maintenance free
Run Time Details
Run Time (Up To) :8 min at half load, 2 min at full load
UPS
Battery Technology :Lead acid
Miscellaneous
Color :Black
Color Category :Black
Included Accessories :Rack mounting rails
Rack Mounting Kit :Included
Height (Rack Units) :6
Compliant Standards :CSA C22.2 No. 107.3, FCC Part 15 A, RoHS, IP20, NOM, UL 1778, REACH
Environmental Standards
ENERGY STAR :Yes
Dimensions & Weight
Width :17 inch
Depth :28.3 inch
Height :10.4 inch
Weight :132.28 lbs
Dimensions & Weight (Shipping)
Shipping Width :24.5 inch
Shipping Depth :37.8 inch
Shipping Height :24.6 inch
Shipping Weight :147.71 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :0 – 95% (non-condensing)
Sound Emission :55 dBA
