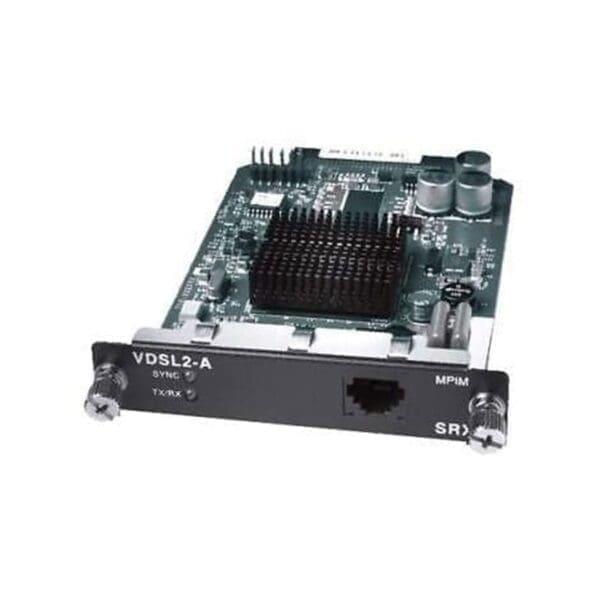

SRX-MP-1VDSL2-R Juniper 1-Port VDSL2 Annex A Mini-Physical Interface

SRX-MP-1VDSL2-R Juniper 1-Port VDSL2 Annex A Mini-Physical Interface

$365.00

Very-high-bit-rate digital subscriber line (VDSL) technology provides faster data transmission over a single flat untwisted or twisted pair of copper wires. The 1-port VDSL2 Annex A Mini-PIM carries the Ethernet backplane. When the Mini-PIM is plugged into the chassis, the Mini-PIM connects to one of the ports of the baseboard switch. The 1-port VDSL2 Annex A Mini-PIM on the SRX services gateway provides ADSL backward compatibility.

SRX-MP-1VDSL2-R Juniper 1-Port VDSL2 Annex A Mini-Physical Interface
$365.00
Contact Us

Manufacturer :Netscreen

Brand :Juniper, Juniper Networks

Product Line :Juniper Networks

Model :1-Port VDSL2 Annex A Mini-Physical Interface Module (Mini-PIM)

Packaged Quantity :1

Modem

Type :DSL modem

Form Factor :Internal

Connectivity Technology :Wired

Max Transfer Rate :100 MBps

Digital Signaling Protocol :VDSL2, ADSL2, ADSL, ADSL2+

Protocols & Specifications :ITU G.993.2

Networking

Data Link Protocol :MLPPP

Features :Asynchronous Transfer Mode (ATM), Quality of Service (QoS), Dying Gasp support

Compliant Standards :IEEE 802.3ah

Interface Provided

Interfaces :1 x VDSL2 – RJ-11

Dimensions & Weight

Width :3.7 inch

Depth :5.7 inch

Height :0.8 inch

Weight :4.02 ounce

Environmental Parameters

Min Operating Temperature :32 degree Fahrenheit

Max Operating Temperature :104 degree Fahrenheit

Humidity Range Operating :5 – 90% (non-condensing)

SKU: SRX-MP-1VDSL2-R Category: Tag:
