Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

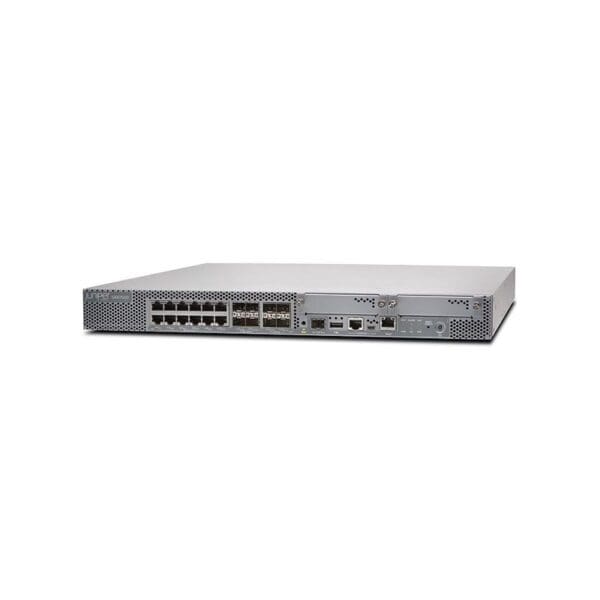

Model :SRX1500 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :16 GB
Hard Drive
Type :SSD
Form Factor :mSATA
Form Factor (metric) :mSATA
Capacity :16 GB
Hard Drive (2nd)
Type :SSD
Capacity :120 GB
Performance
Performance :Firewall throughput (IMIX): 5 Gbps, Firewall throughput (64-byte packet size): 2 Mpps, Firewall throughput (1518-byte packet size): 10 Gbps, VPN throughput (IPSec): 1 Gbps, Application control (AVC) throughput: 3 Gbps, Connection rate: 50000 connections per second
Capacity
Capacity :GRE tunnels: 2000, Virtual routers: 512, IPv6 routing table entries: 2000000, Virtual interfaces (VLANs): 1000, MAC addresses: 64000, IPSec VPN tunnels: 2000, Concurrent IPSec sessions: 512000, IPv4 routing table entries: 2000000, Security zones: 512, Security policies: 16000, Maximum number of NAT rules: 8000
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :20
Connectivity Technology :Wired
Data Link Protocol :Gigabit Ethernet, Fast Ethernet, 10 Gigabit Ethernet, Ethernet
Routing Protocol :OSPF, PIM-SSM, VRRP, PIM-DM, RIP-2, IGMPv2, MSDP, IGMP, PIM-SM, BGP, RIP-1, Static IP routing, ECMP, DVMRP, OSPFv3
Network / Transport Protocol :IPSec, DHCP, DNS, PPPoE, DDNS
Remote Management Protocol :Telnet, SNMP, SSH, CLI, HTTP
Features :DHCP client, DDos attack prevention, IPv6 support, Intrusion Prevention System (IPS), Firewall protection, DiffServ Code Point (DSCP) support, VPN support, LLDP support, Generic Routing Encapsulation (GRE), J-Flow, DHCP server, Anti-virus protection, Dead Peer Detection (DPD), IPSec NAT-Traversal (NAT-T), Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, IPv4 support, Front to back airflow, NAT support, Quality of Service (QoS), PAT support, DHCP relay, Spanning Tree Protocol (STP) support, URL filtering, Inspect SSL Encrypted Traffic, Anti-spam protection
Compliant Standards :IEEE 802.1x, IEEE 802.1p
IP Telephony
VoIP Protocols :SDP
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :4 x 1000Base-X – SFP (mini-GBIC), 1 x 1000Base-T (management) – RJ-45, 12 x 1000Base-T – RJ-45, 4 x 10Gb Ethernet – SFP+, 1 x mini-USB, 1 x USB 2.0 – Type A, 1 x console – RJ-45, 1 x management – SFP (mini-GBIC)
OS Provided
Type :JUNOS
Power Device
Type :External power adapter
Power Redundancy :Optional
Installed Qty :1
Max Supported Qty :2
Nominal Voltage :AC 120/230 V
Frequency Required :50/60 hertz
Power Consumption Operational :150 watt
Miscellaneous
TAA Compliant :Yes
Height (Rack Units) :1
Encryption Algorithm :SSL, DES, MD5, IKE, 256-bit SHA, IKEv2, 256-bit AES, SHA-1, Triple DES, PKI
Authentication Method :Active Directory, Secure Shell (SSH), X.509 certificates
MTBF :85,787 Hours
Compliant Standards :FCC Class A certified, RoHS2
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :1.7 inch
Weight :16.09 lbs
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
