Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks

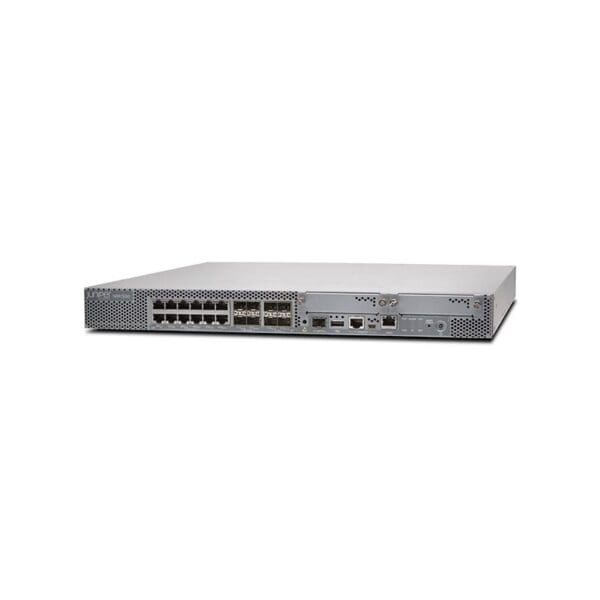

Model :SRX1500 Services Gateway
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
RAM
Installed Size :16 GB
Networking
Type :Security appliance
Form Factor :Rack-mountable
Ports Qty :20
Connectivity Technology :Wired
Data Link Protocol :10 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet
Remote Management Protocol :CLI, SNMP, HTTP, Telnet, SSH
Features :Front to back airflow
Expansion Bays
Expansion Bays :2 (total) / 2 (free) x internal
Expansion Slots
Expansion Slots :2 (total) / 2 (free) x expansion slot
Interface Provided
Interfaces :12 x 1000Base-T – RJ-45, 1 x USB 2.0 – Type A, 1 x 1000Base-T (management) – RJ-45, 4 x 10Gb Ethernet – SFP+, 1 x console – RJ-45, 4 x 1000Base-X – SFP (mini-GBIC), 1 x management – SFP (mini-GBIC), 1 x mini-USB
Power Device
Type :External power adapter
Power Redundancy :Optional
Installed Qty :0
Max Supported Qty :2
Power Consumption Operational :150 watt
Miscellaneous
Height (Rack Units) :1
MTBF :85,787 Hours
Dimensions & Weight
Width :17.5 inch
Depth :18.2 inch
Height :1.7 inch
Environmental Parameters
Min Operating Temperature :32 degree Fahrenheit
Max Operating Temperature :104 degree Fahrenheit
Humidity Range Operating :10 – 90% (non-condensing)
